Product introduction：
The production of blended fertilizers is to directly mix simple fertilizers or compound fertilizers
containing nitrogen, phosphorus, and potassium nutrients by physical mixing according to the corresponding formula.

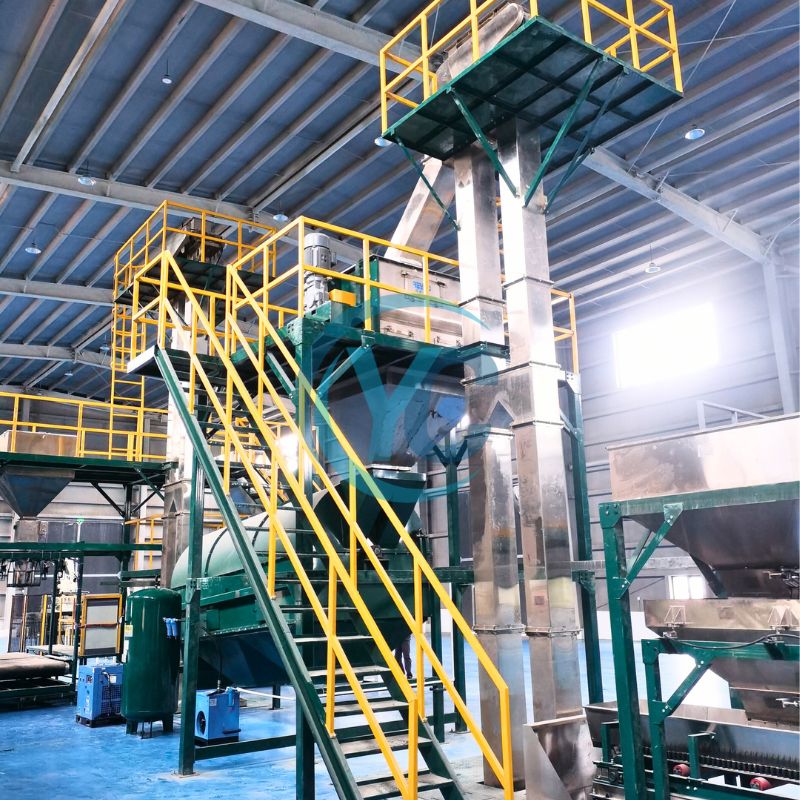

After the raw materials pass through the automatic metering system, the elevator lifts them and transports them to the mixer.

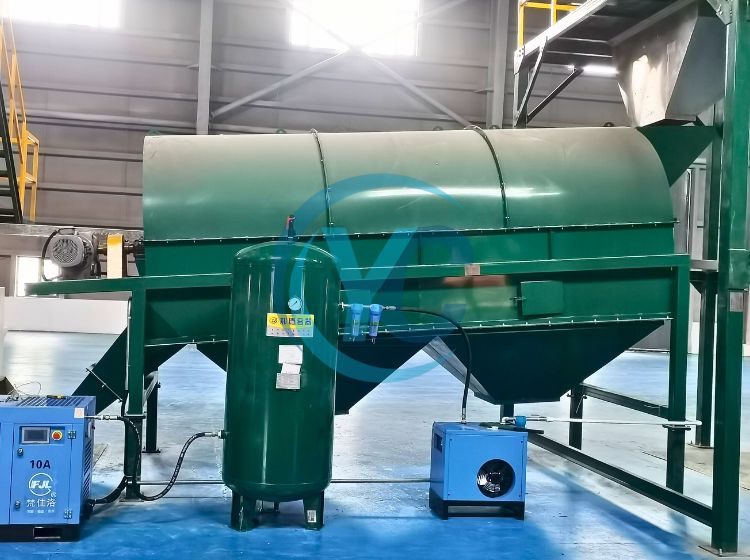

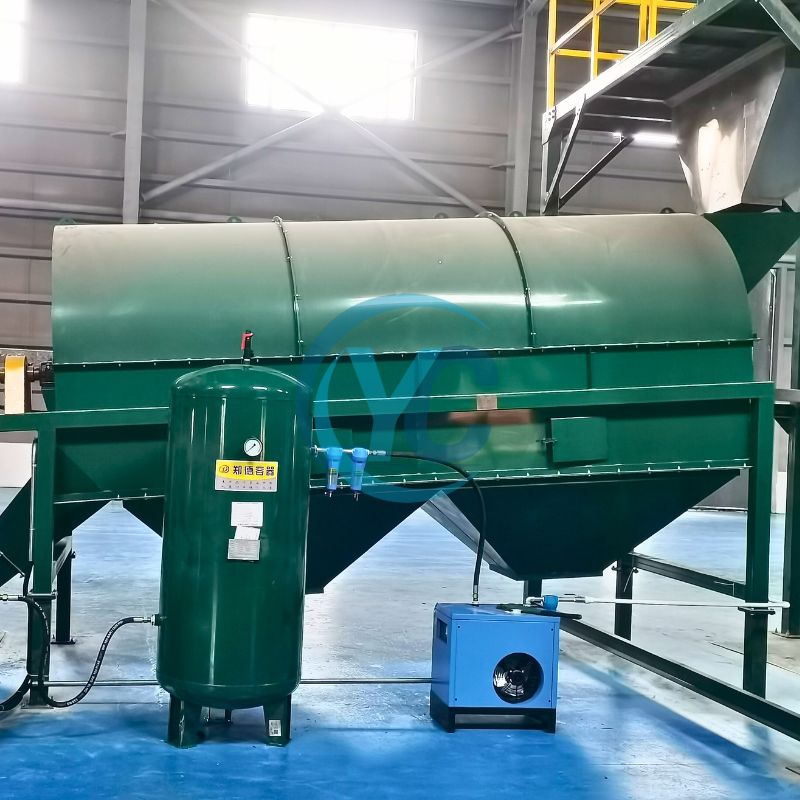

The mixer mixes the materials evenly and then measures and packages them.

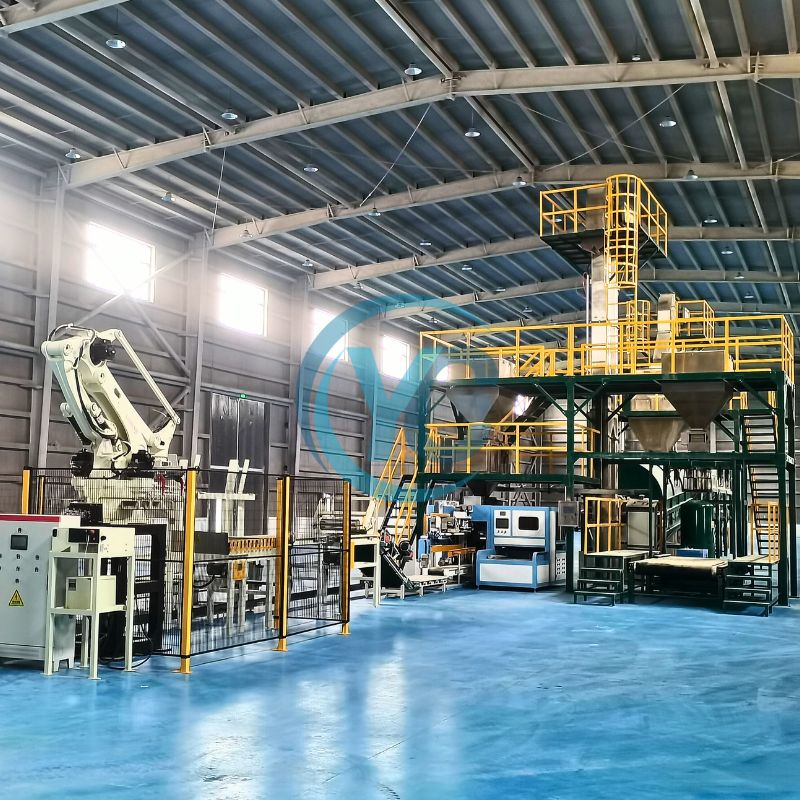

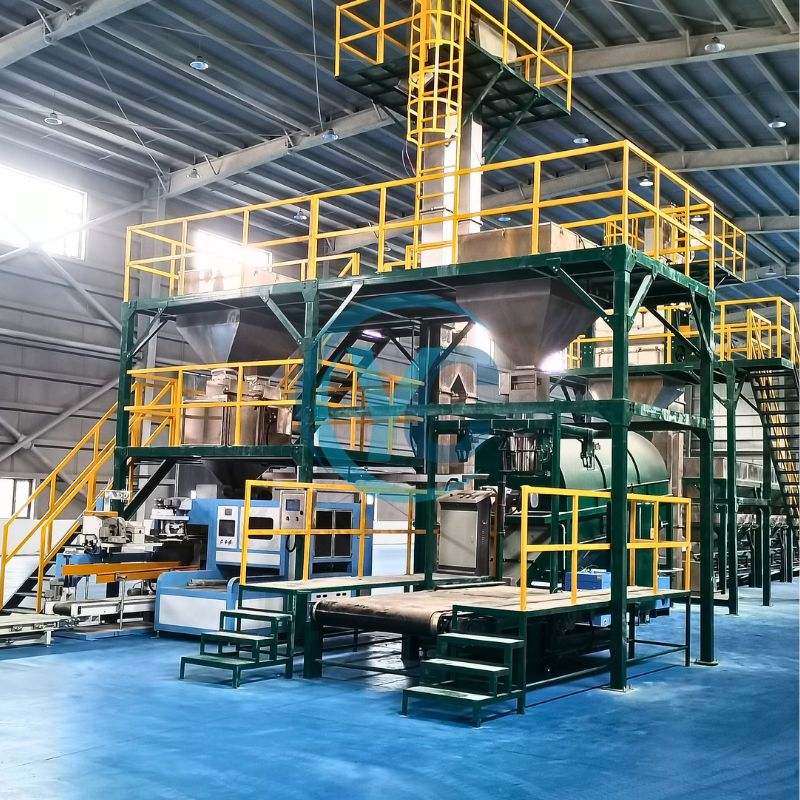

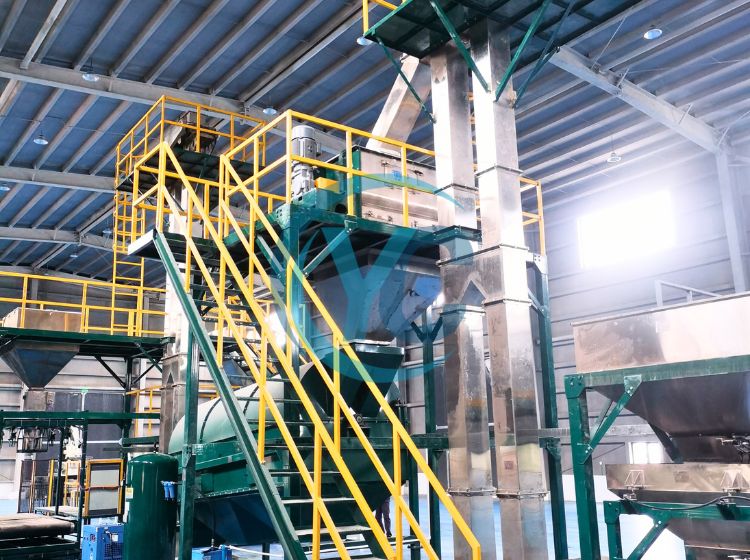

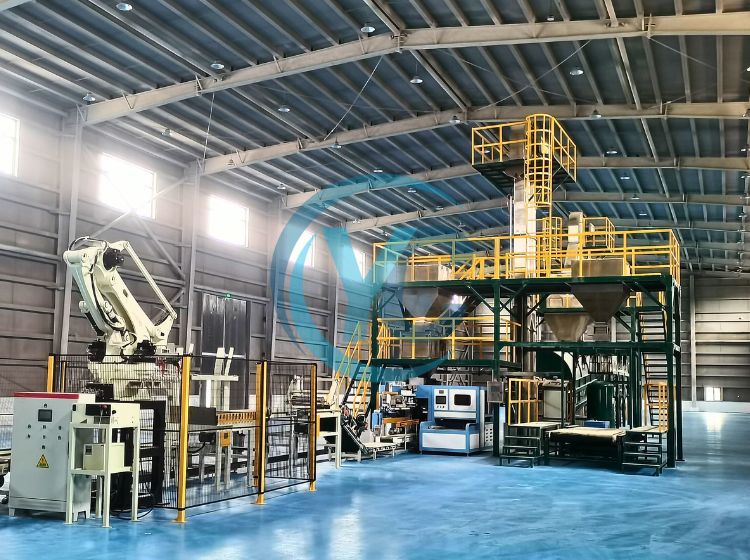

The production line generally includes five parts: ingredient metering system,
conveying system, mixing system and quantitative packaging system.
Product parameter：
Capacity | 30 tons/h |
Packaging scope | 25-50KG |
Types of raw materials | 8 |
Working power supply | AC 380V ±10% Or customized according to customers |
Air source pressure | 0.4-0.8mpa |
Suitable for temperature | 30℃ -- +40℃ |
Relative humidity | 85%R.H |
ccuracy | ± 0.2% |
Process flow chart
