Product introduction：
The production of blended fertilizers is to directly mix simple fertilizers or compound fertilizers
containing nitrogen, phosphorus, and potassium nutrients by physical mixing according to the corresponding formula.

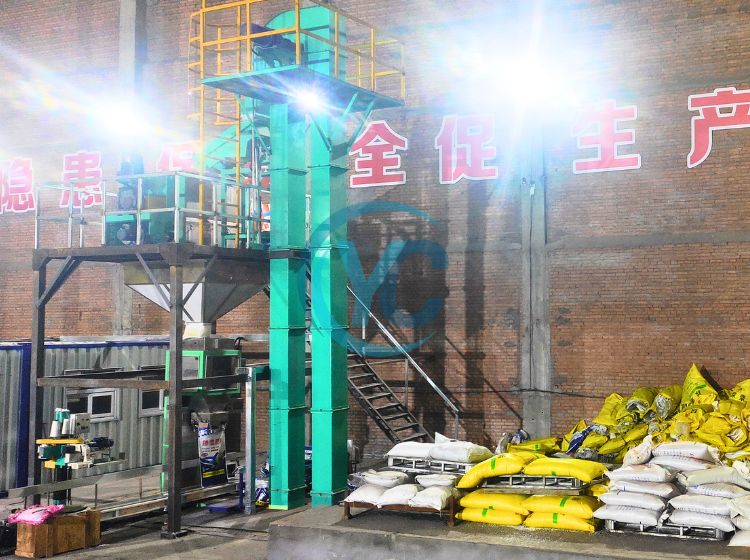

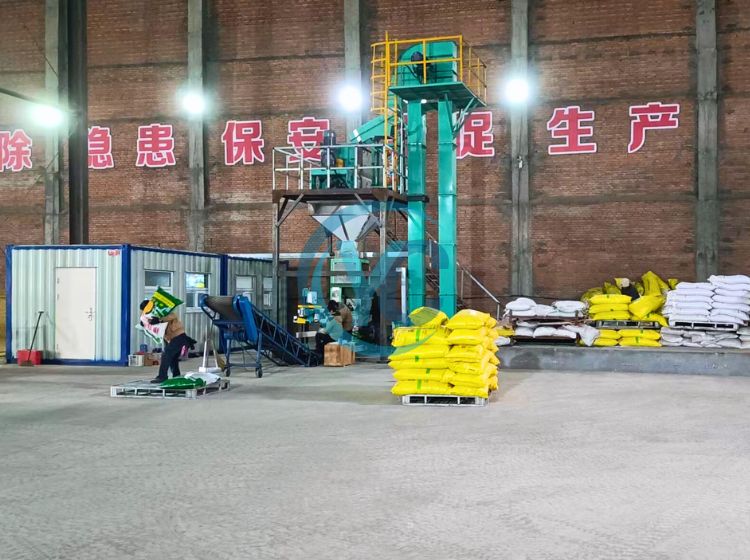

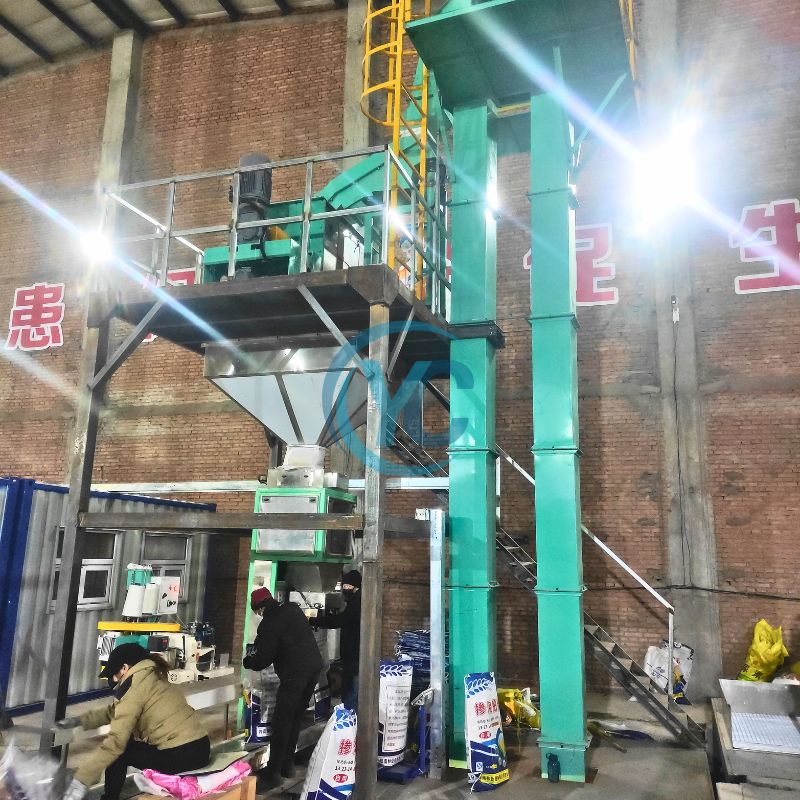

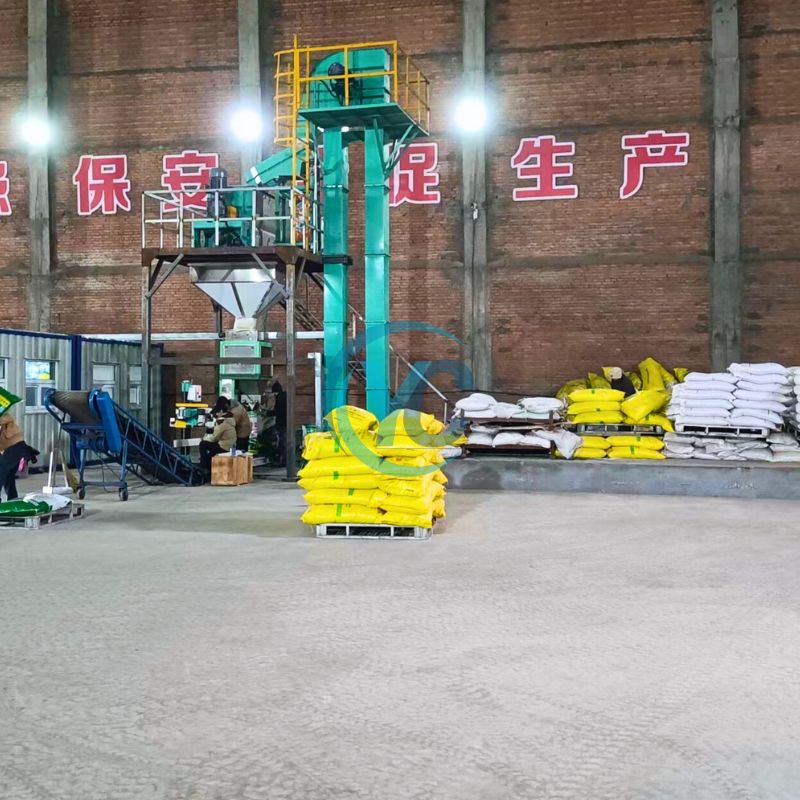

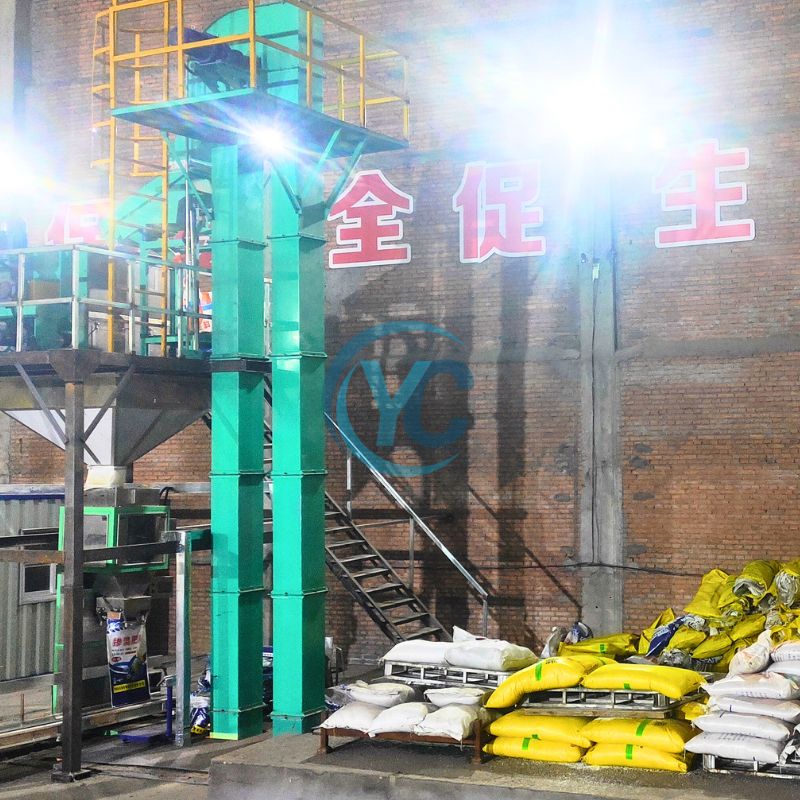

After the raw materials pass through the automatic metering system, the elevator lifts them and transports them to the mixer.

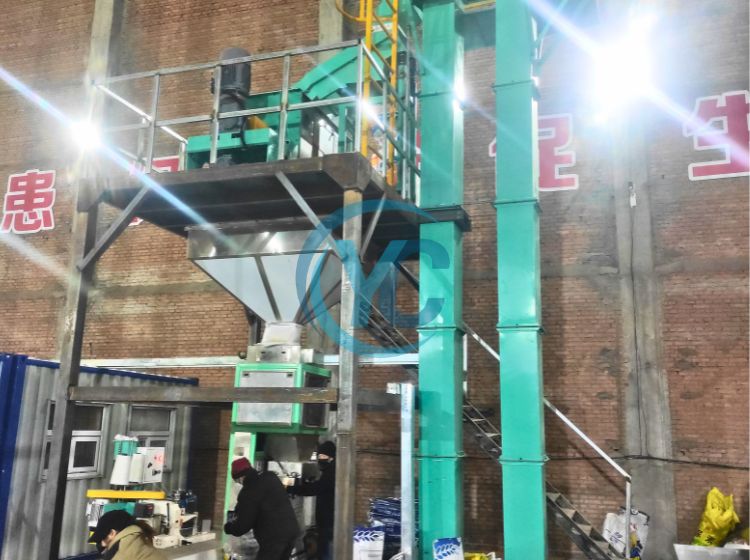

The mixer mixes the materials evenly and then measures and packages them.
The production line generally includes five parts: ingredient metering system,
conveying system, mixing system and quantitative packaging system.
Key Features of the Production Line:

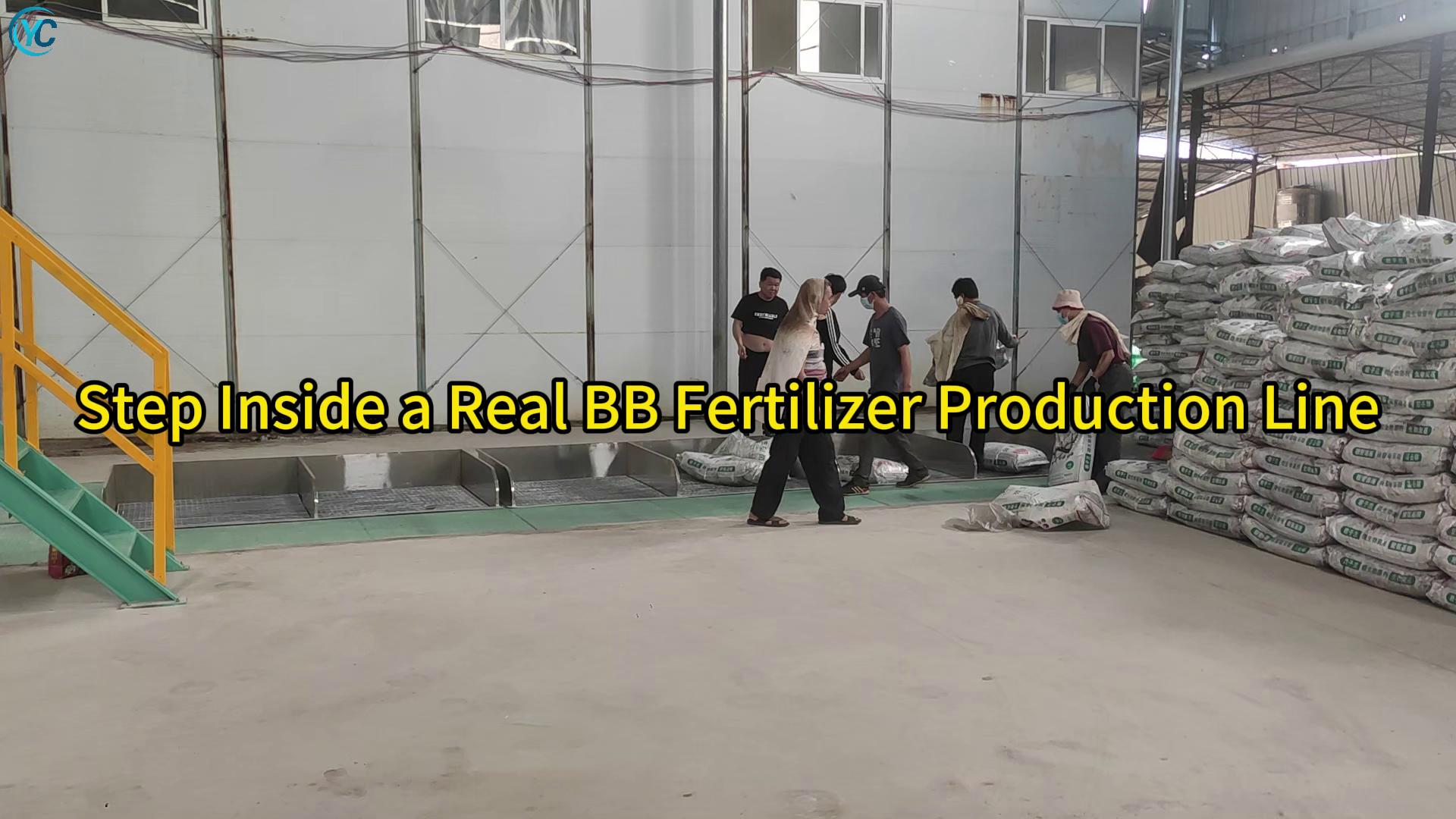

Pit-Style BB Fertilizer Production Line
Compact footprint and streamlined design make material feeding more convenient.
Computerized Batching System
Precise loss-in-weight weighing allows flexible adjustment of NPK ratios to meet varying granular fertilizer requirements.

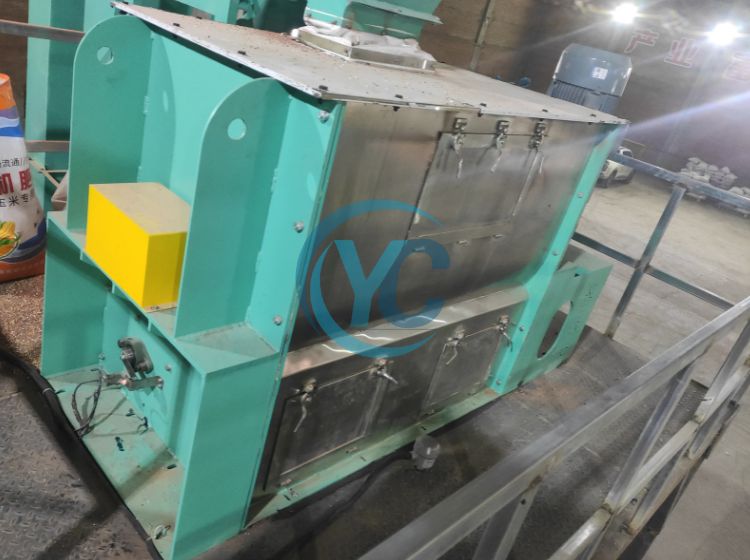

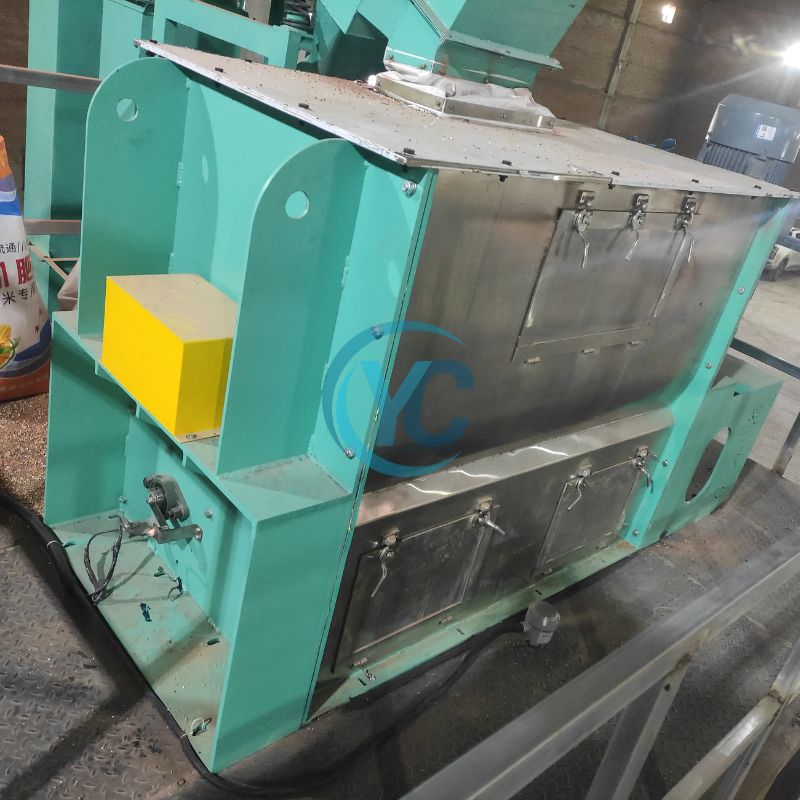

Double Ribbon Mixer
Ensures high uniformity in blending, delivering consistent pellet quality.
Linear Vibrating Screener
Efficiently removes fines and impurities to boost granule uniformity and yield.
Advanced PLC Automation
Centralized control with accurate fault diagnostics, simple operation, and low maintenance costs.
Versatile Formulation Capability
Supports a wide range of fertilizer recipes to suit different crops and soil conditions, maximizing production efficiency and profitability.
Product parameter：
Capacity | 20 tons/h |
Packaging Scope | 25-50KG |
Types Of Raw Materials | 3-12 |
Working Power Supply | AC 380V ±10% Or customized according to customers |
Air Source Pressure | 0.4-0.8mpa |
Suitable For Temperature | 30℃ -- +40℃ |
Relative Humidity | 85%R.H |
Accuracy | ± 0.2% |
Process flow chart
