Semi-Automatic Fertilizer Blending System with Manual Batching and Drum Mixer


fertilizer blending system is equipped with an efficient mixing process that can blend different materials uniformly within 2 minutes. Even in a short time, the materials are thoroughly mixed, ensuring precise nutrient ratios in every batch of fertilizer to meet the high-quality standards required for agricultural production.
Product name：6 tons NPK fertilizer production line
Material type：4-8 Materials, customizable
Mixed form：Horizontal Double Ribbon Mixer/Horizontal Twin Ribbon Blender
Measurement accuracy：±0.2%
Supply voltage：380V，50HZ
Working air source：0.4-0.6Mpa
Operating temperature：-25℃—40℃
Weighing speed：3-4bag/minute
Weighing range：20-50kg
Chat Now
production detail

Configuration List

  1. Manual Feeding
    Materials are manually added based on the calculated nitrogen, phosphorus,

    and potassium ratios, ensuring accurate formulas for each batch of fertilizer to meet requirements.

  2. Ground Feeding
    The ground feeding method is simple and convenient, effectively saving time and labor costs.

  3. Drum Mixer Feeding
    Materials are fed into the drum mixer, reducing material damage and ensuring fertilizer quality.

  4. No-Hopper Granular Packaging Machine
    Equipped with a no-hopper granular packaging machine, this system offers high production efficiency,

    packaging 3-4 bags of fertilizer per minute.

  5. Application Scenarios
    Ideal for small agricultural stores, small fertilizer factories, and large-scale growers,

    meeting flexible small-batch production needs.

  6. Various Fertilizer Ratios
    Capable of batching nitrogen, phosphorus, and potassium fertilizers, or packaging ton-bags of fertilizers,

    adapting to diverse market needs.


Product parameter：


Capacity

6 tons/h

Packaging scope

25-50KG

Types of raw materials

3-12

Working power supply

AC 380V ±10% Or customized according to customers

Air source pressure

0.4-0.8mpa

Suitable for temperature

30℃ -- +40℃

Relative humidity

85%R.H

Accuracy

± 0.2%



Process flow chart

fertilizer production process diagram

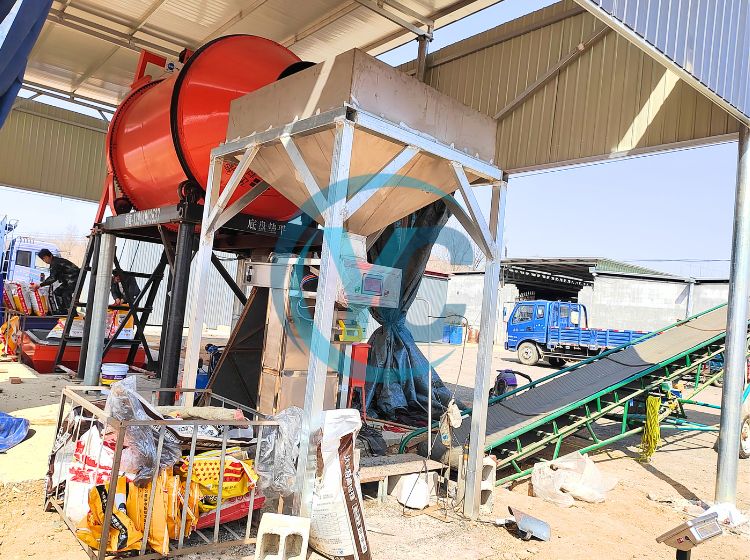

fertilizer blenders.jpg

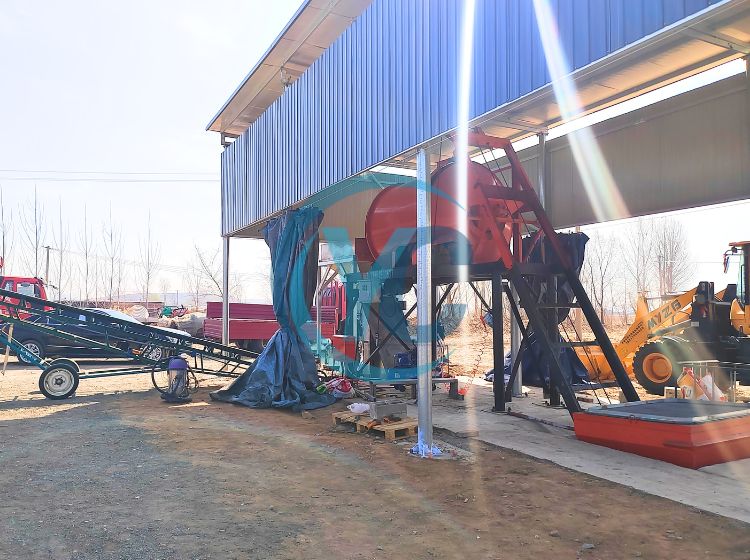

dry fertilizer mixer .jpg

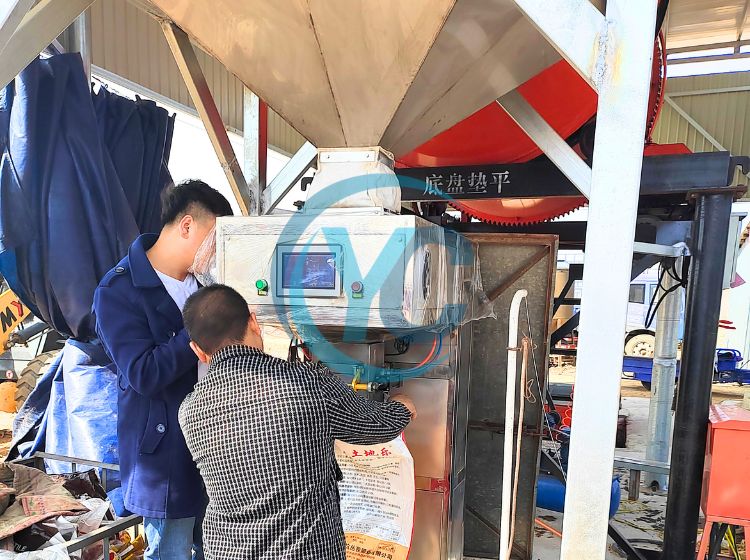

fertilizer mixing machine .jpg

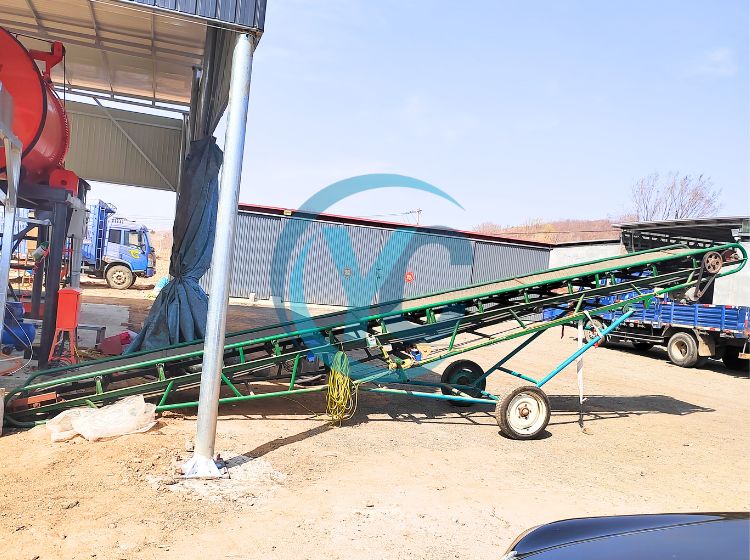

mixing fertilizer for npk .jpg
