npk fertilizer manufacturing equipment​


Small-Scale Powder Fertilizer Line (1–3 TPH) uses a hydraulic lifter for feeding, a twin-ribbon mixer for fast, even blending, and an automatic packer for final bagging.

Crushes urea and caked materials before mixing. Blends in 30–60 seconds with no residue. Packs into 5–25 kg bags at 3–4 bags per minute, sealed or stitched.

Supports custom formulas like foliar fertilizers, nutrient blends, and amino or humic acid types. Runs with just 4 workers. Clean, simple, and efficient.
Product name:Semi-Automatic Water-Soluble Fertilizer Production Line
Material type:3-12 type
Mixed form:Horizontal Double Ribbon Mixer/Horizontal Twin Ribbon Blender
Measurement accuracy:±0.2%
Supply voltage:380V,50HZ
Working air source:0.4-0.8mpa
Operating temperature:-25℃—40℃
Weighing speed:3-4bag/minute
Weighing range:5-25kg
production detail

Performance characteristics:

1. The system uses artificial ingredients, less investment, small footprint, flexible production.

2. The main body adopts three-dimensional structure closed design, quick loading link, less storage material, no blockage, easy to clean.

3. Equipped with dust removal facilities, dust-free packaging, in line with environmental assessment requirements.

4. Optional automatic packaging, packing, palletizing equipment.

5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion

water soluble fertilzier .jpg

Process flow


Lifting machine material - manual point package, dust-free feeding station feeding - raw material crushing - efficient mixer -

Finished product silo -- Powder packing scale -- sealing and conveying -- Packing and packing (optional) -- Palletizing (optional)


npk production.jpg



npk production process.jpg

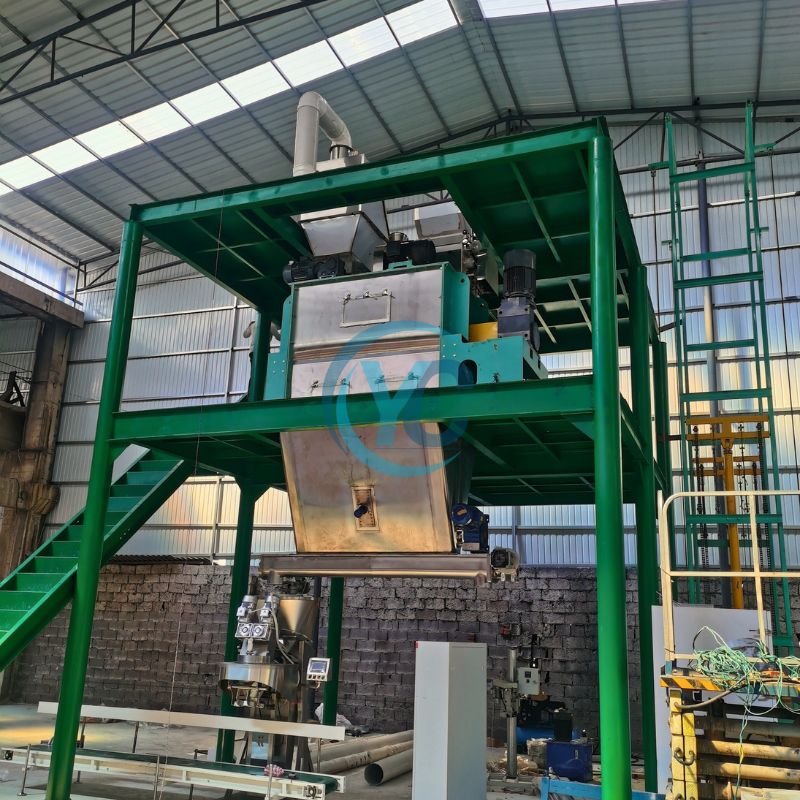

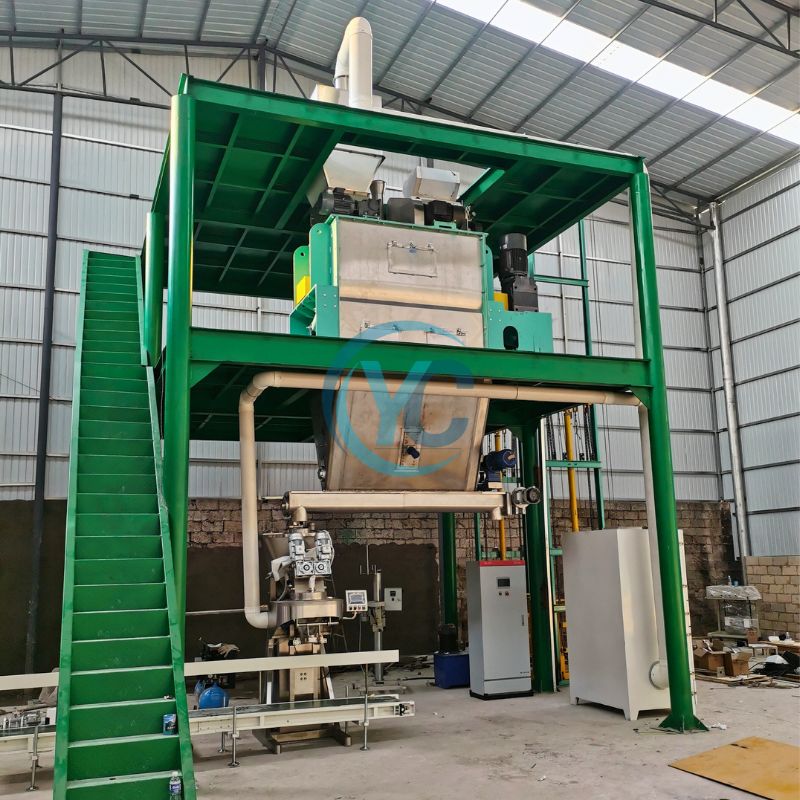

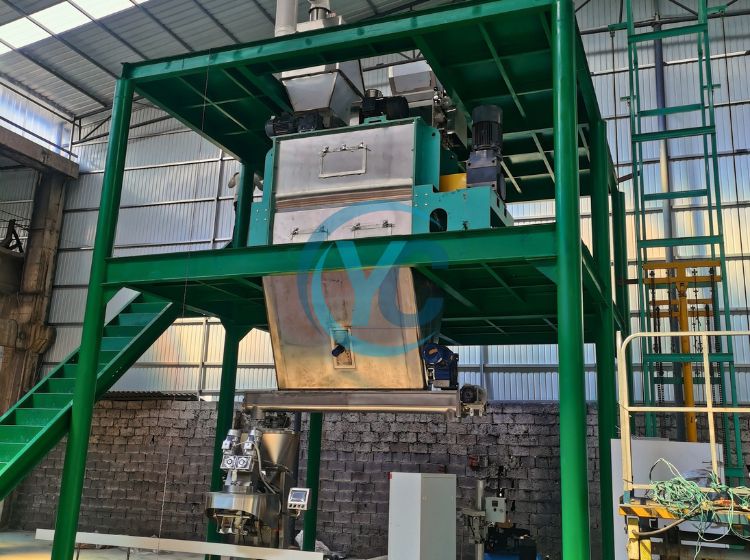

npk production line.jpg

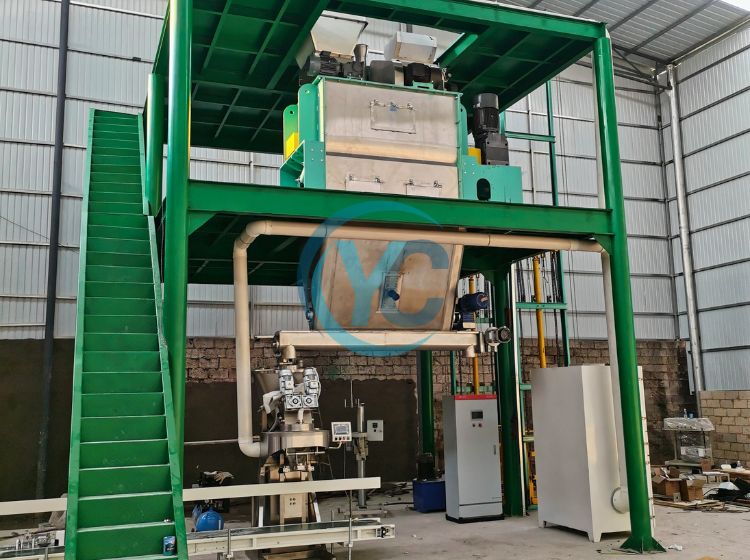

fertilizer mixing machine.jpg

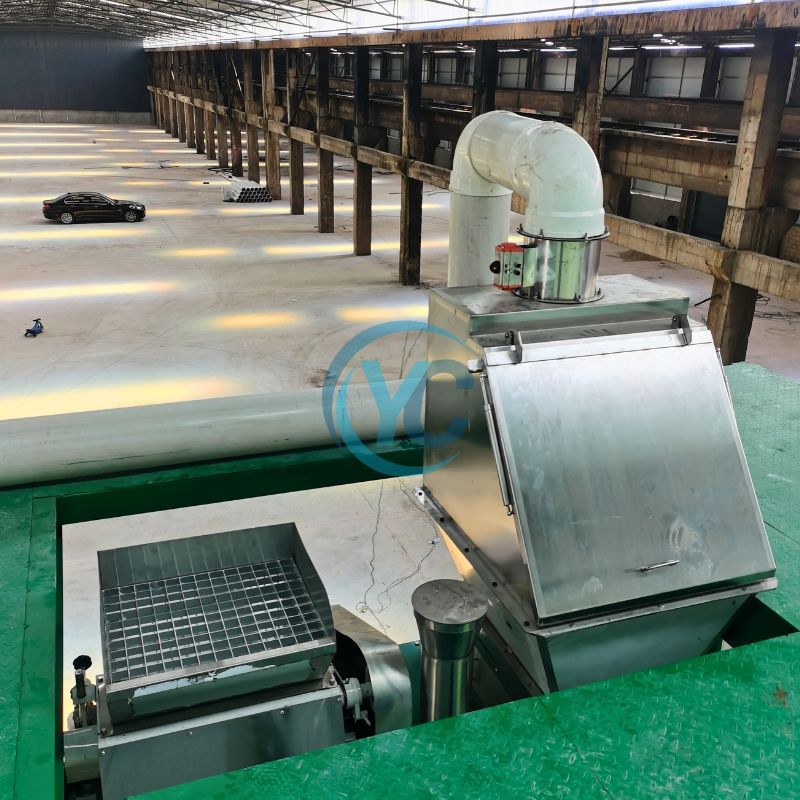

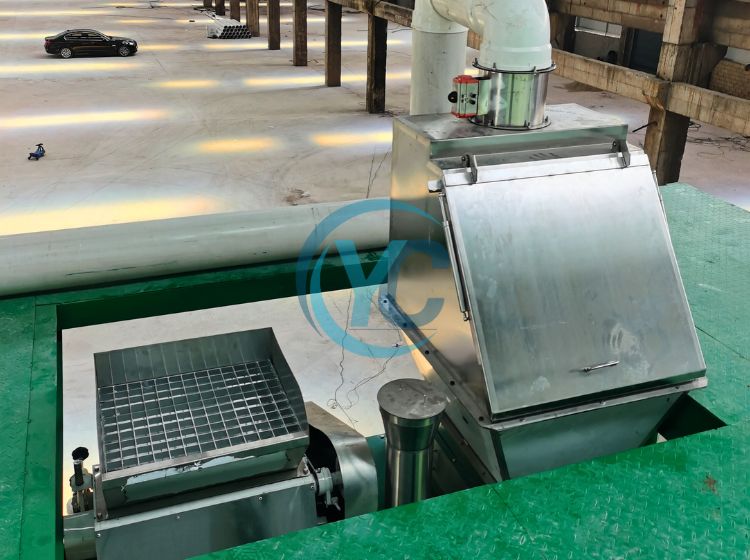

fertilizer crushing machine.jpg

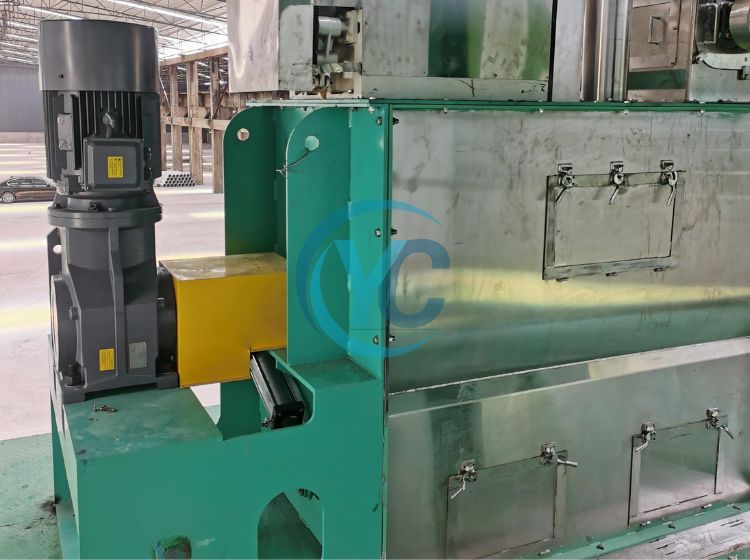

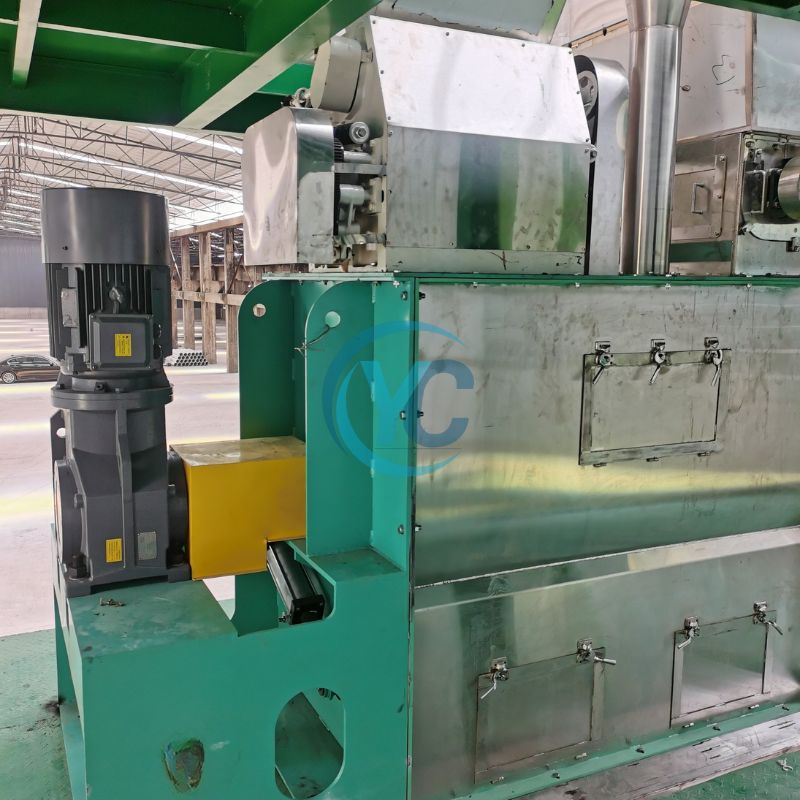

fertilizer ribbon blender .jpg
