Cost-Effective Water Soluble Fertilizer Mixing Plant with Mixer


Water soluble fertilizer production line built for small and medium farms. Offers dual inlets for crushing urea and hard materials, mixes thoroughly in 30–60 seconds with a twin-ribbon mixer, and delivers accurate open-mouth bagging from 5 to 25 kg. Supports custom formulas including macro, micro, amino acid, and humic acid blends. Low dust, simple to run, and needs only 4 operators—perfect for efficient fertilizer production.
Product name:Semi-Automatic Water-Soluble Fertilizer Production Line
Material type:3-12 type

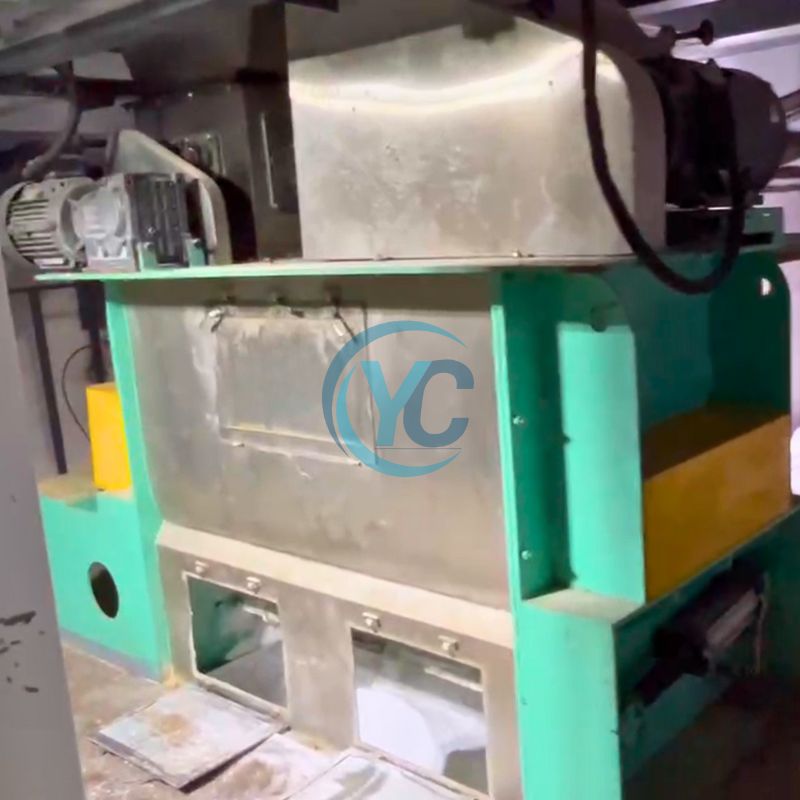

Mixed form:Horizontal Double Ribbon Mixer/Horizontal Twin Ribbon Blender
Measurement accuracy:±0.2%
Supply voltage:380V,50HZ
Working air source:0.4-0.8mpa
Operating temperature:-25℃—40℃
Weighing speed:3-4bag/minute
Weighing range:5-25kg
production detail

Performance characteristics:

1. The system uses artificial ingredients, less investment, small footprint, flexible production.

2. The main body adopts three-dimensional structure closed design, quick loading link, less storage material, no blockage, easy to clean.

3. Equipped with dust removal facilities, dust-free packaging, in line with environmental assessment requirements.

4. Optional automatic packaging, packing, palletizing equipment.

5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion

Process flow

lifting machine material - manual point package, dust-free feeding station feeding - raw material crushing - efficient mixer -

finished product silo -- powder packing scale -- sealing and conveying -- packing and packing (optional) -- palletizing (optional)


npk manufacturing process.jpg



how npk is made.jpg

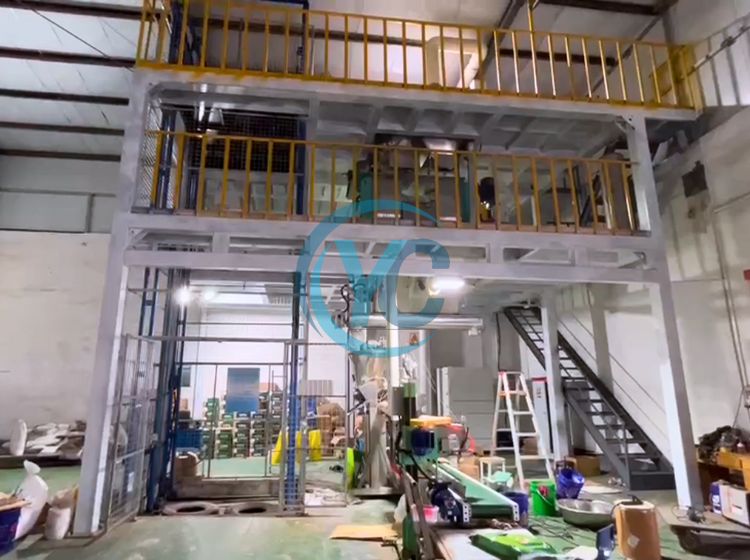

lawn fertilizer production equipment.jpg

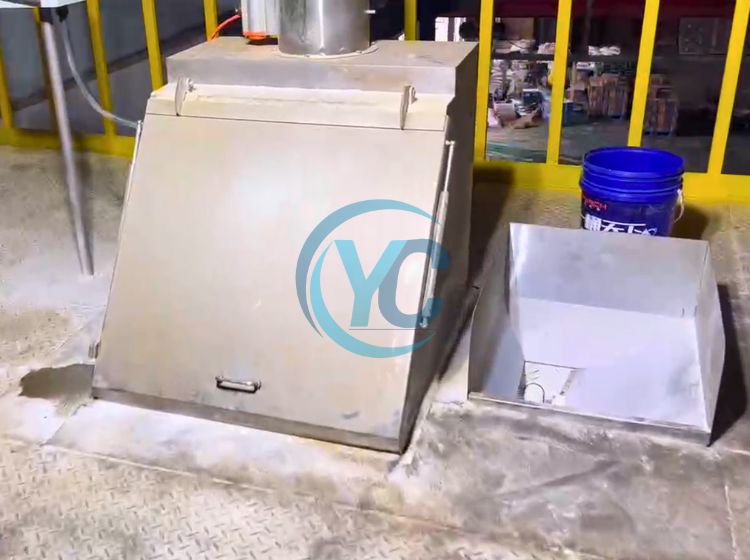

grass fertilizer manufacturing machine.jpg

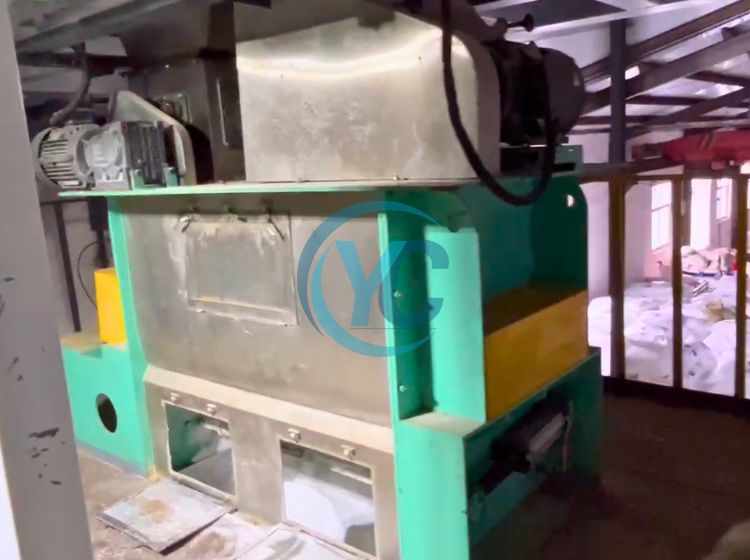

commercial fertilizer mixing equipment.jpg

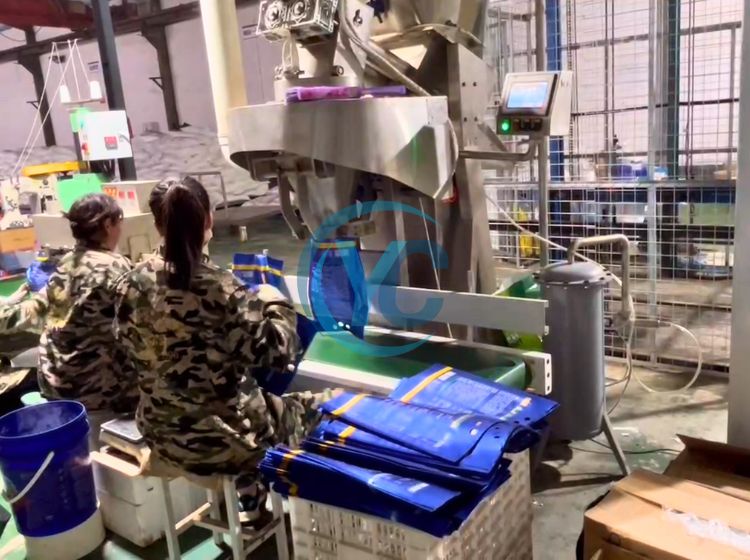

fertilizer bag packing machine.jpg
