Structural Features:

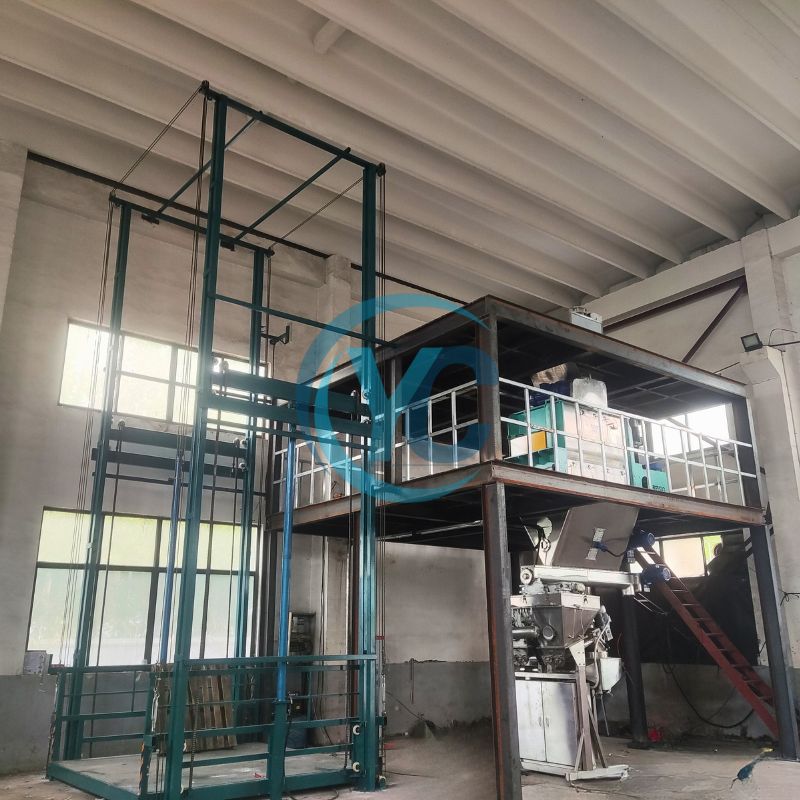

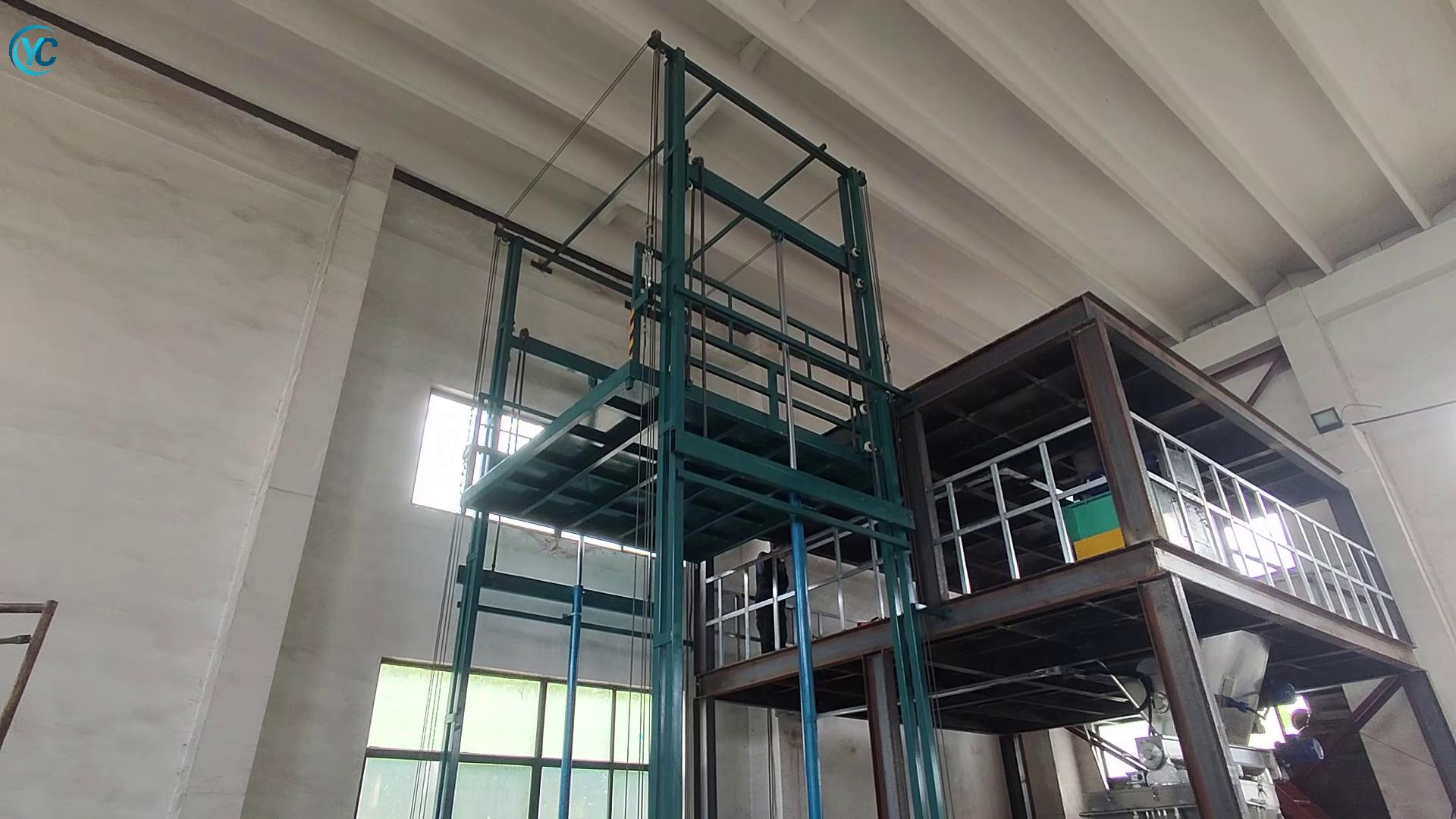

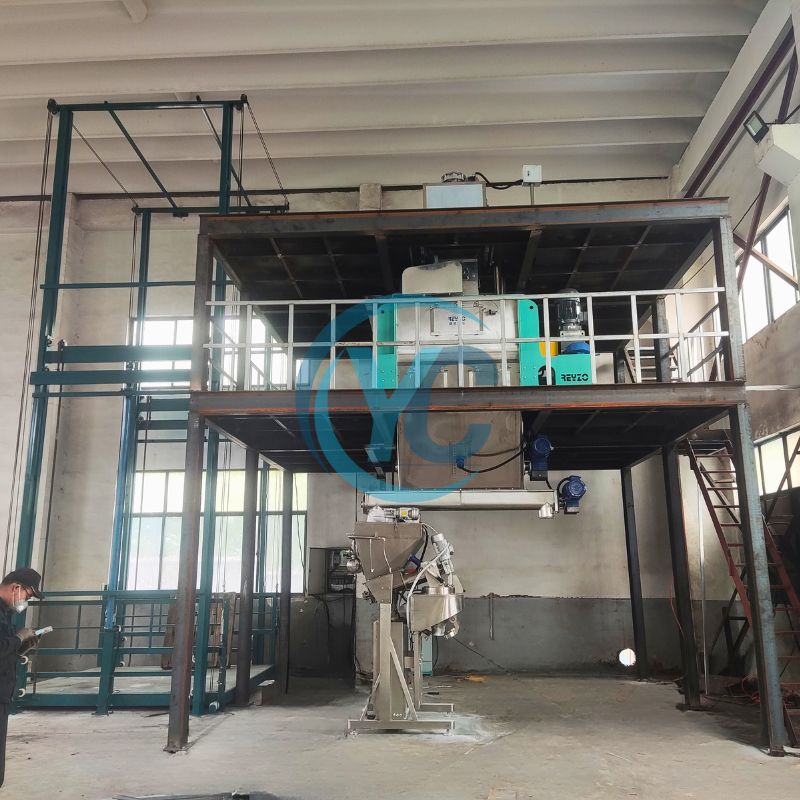

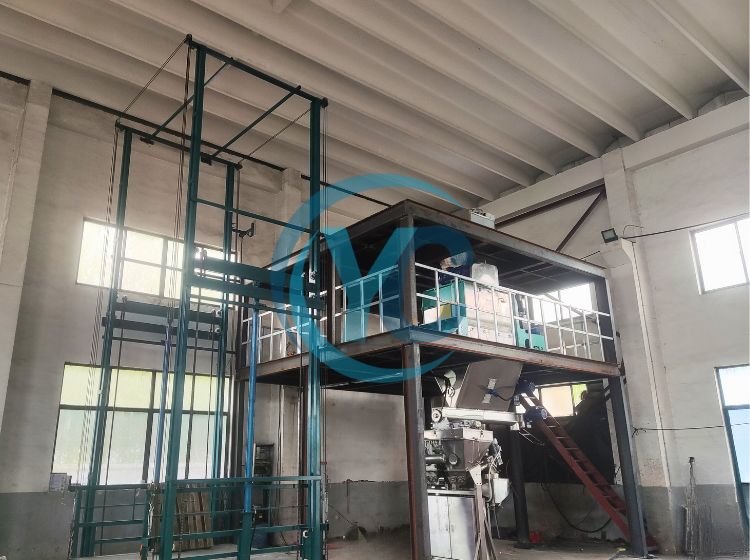

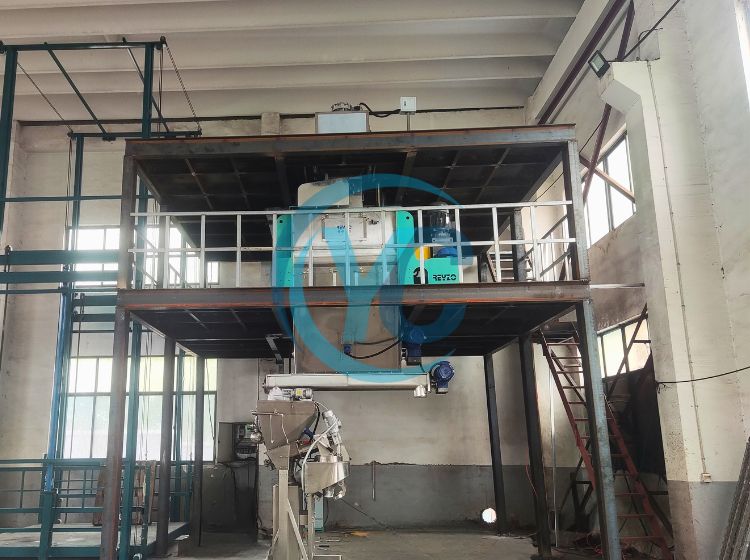

The entire production line adopts a vertical enclosed structure with a compact and efficient layout.
Materials flow from top to bottom, preventing blockages.
The equipment requires a factory ceiling height of at least 8 meters to ensure optimal operation and continuous processing.
10 key components:
crusher for raw material powdering
dust-free feeding station for dust control
pulse dust collector to keep the workshop clean
fertilizer blender machine for uniform mixing
set of storage silos for finished products
screw conveyors for precise feeding
packaging machine
bag sewing machine
conveyor belt
PLC control system
The system is easy to operate with 3–4 personnel.
Performance characteristics：
1. The system uses artificial ingredients, less investment, small footprint, flexible production.
2. The main body adopts three-dimensional structure closed design, quick loading link, less storage material, no blockage, easy to clean.
3. Equipped with dust removal facilities, dust-free packaging, in line with environmental assessment requirements.
4. Optional automatic packaging, packing, palletizing equipment.
5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion
Process flow
Lifting machine material- manual point package, dust-free feeding station feeding- raw material crushing - efficient mixer
- finished product silo - powder packing scale - sealing and conveying - packing and packing (optional) - palletizing (optional)
