Overview

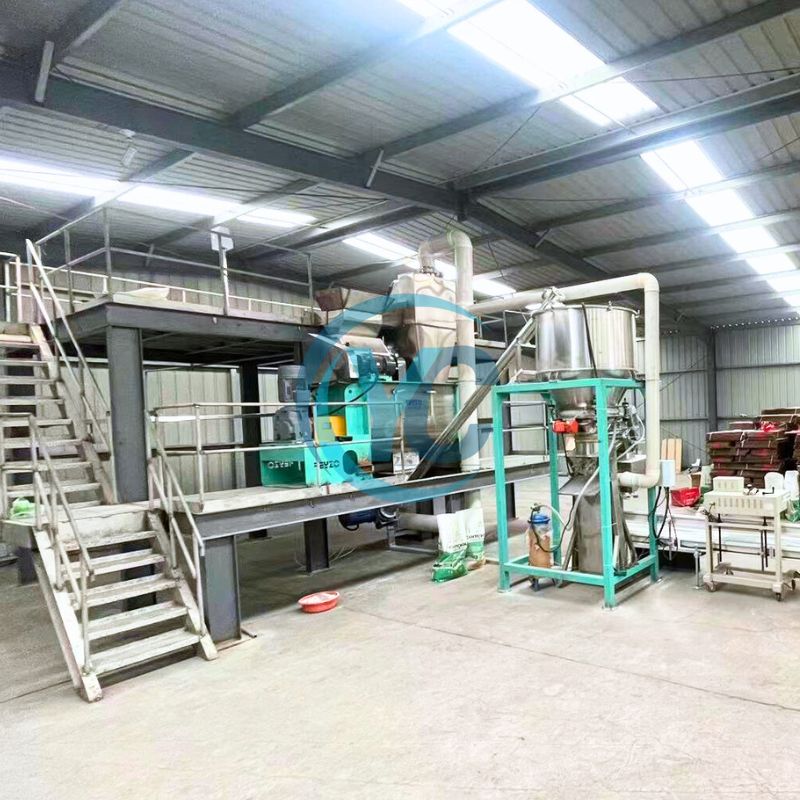

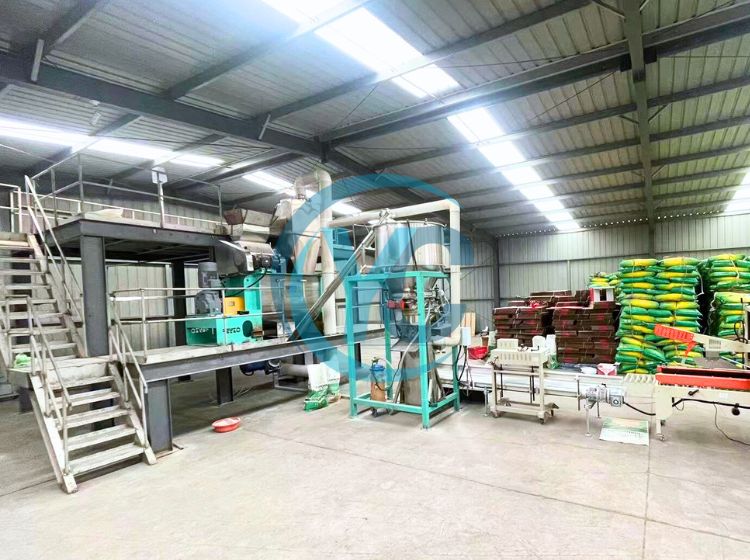

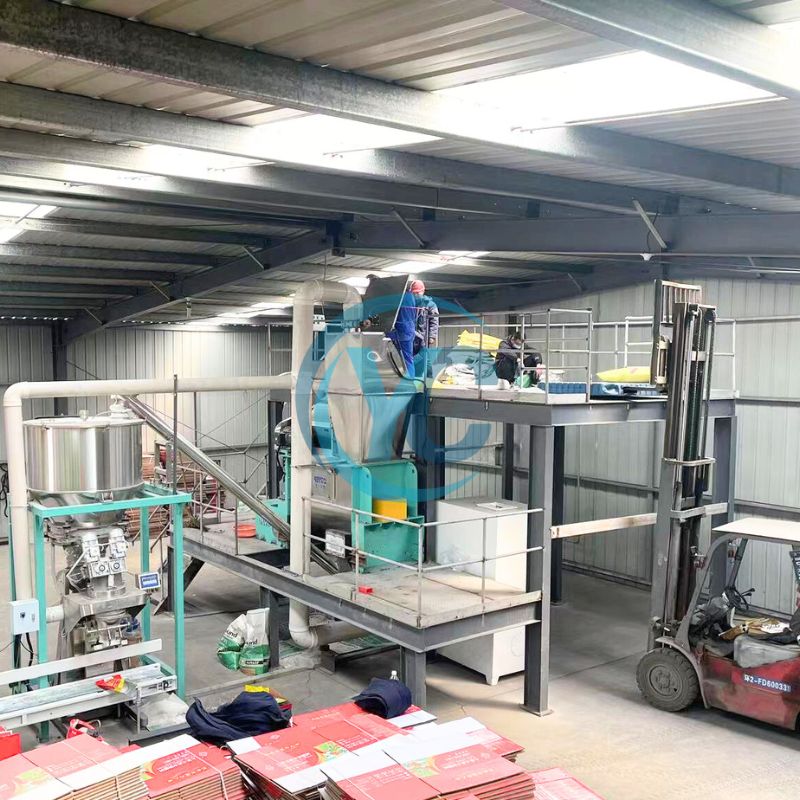

This semi-automatic powder water soluble fertilizer production line is designed for low-height workshops with a maximum height of 6 meters. Materials are lifted by an inclined screw conveyor
and sent to the product silo for packaging.
The line follows a gravitybased process layout. Materials drop naturally from one stage to the next.
This reduces energy consumption and prevents clogging.
It increases production efficiency and lowers maintenance needs.
Echo Semi-Automatic Powder Water Soluble Fertilizer Production Line – Equipment Configuration
This production line uses a modular design. The layout is compact and well-organized.
It is ideal for standard fertilizer production in small and medium-sized factories.
Each piece of core equipment is configured as a single unit:
Small Particle Urea Crusher
Crushes granular urea into fine powder. Meets the requirement for powder blending.
Pulse Dust Collector (with Piping)
Captures dust from mixing and feeding processes. Keeps the workshop clean and dust-free.

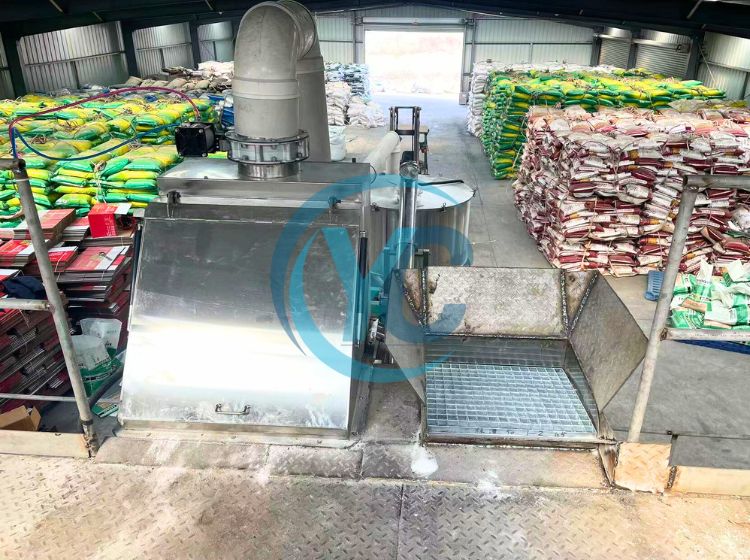

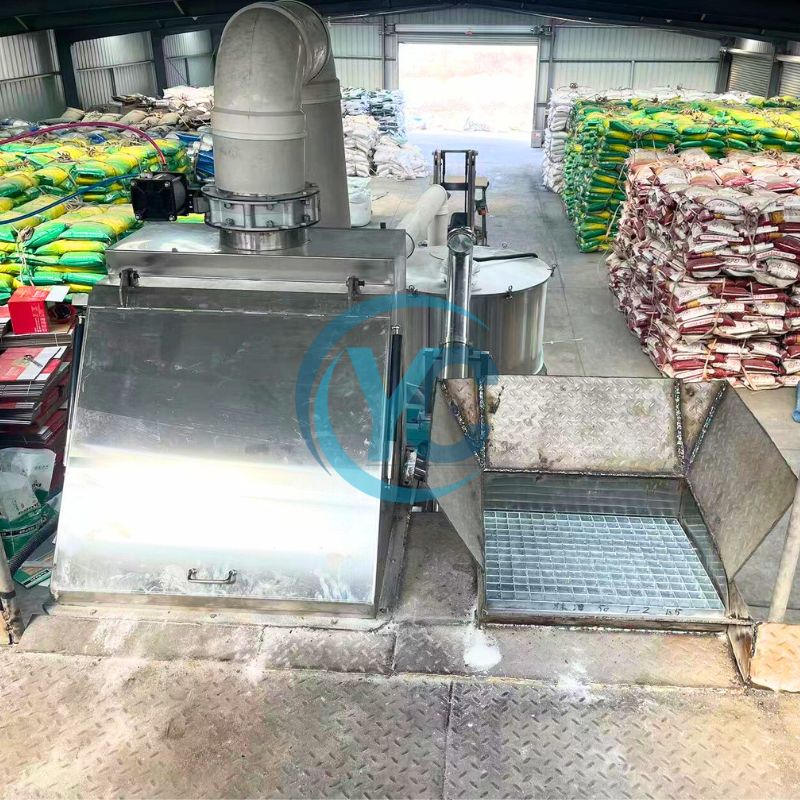

Dust-Free Feeding Station
Equipped with gas-spring door and dust outlet. Allows manual feeding with minimal dust leakage.

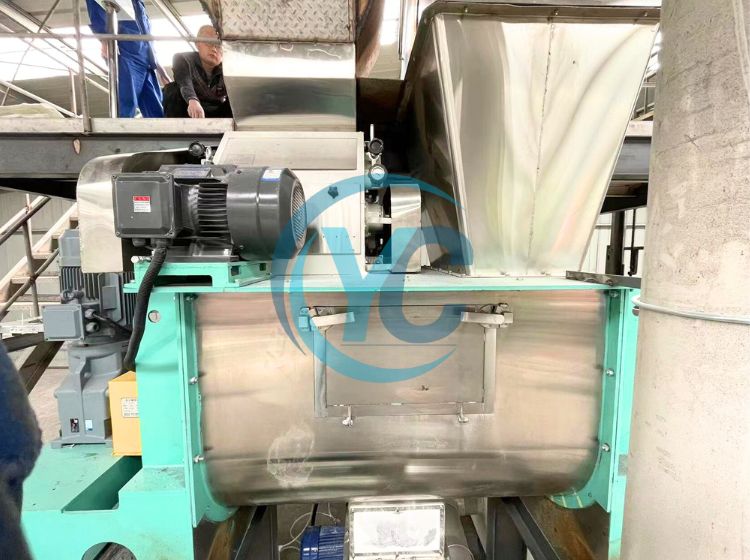

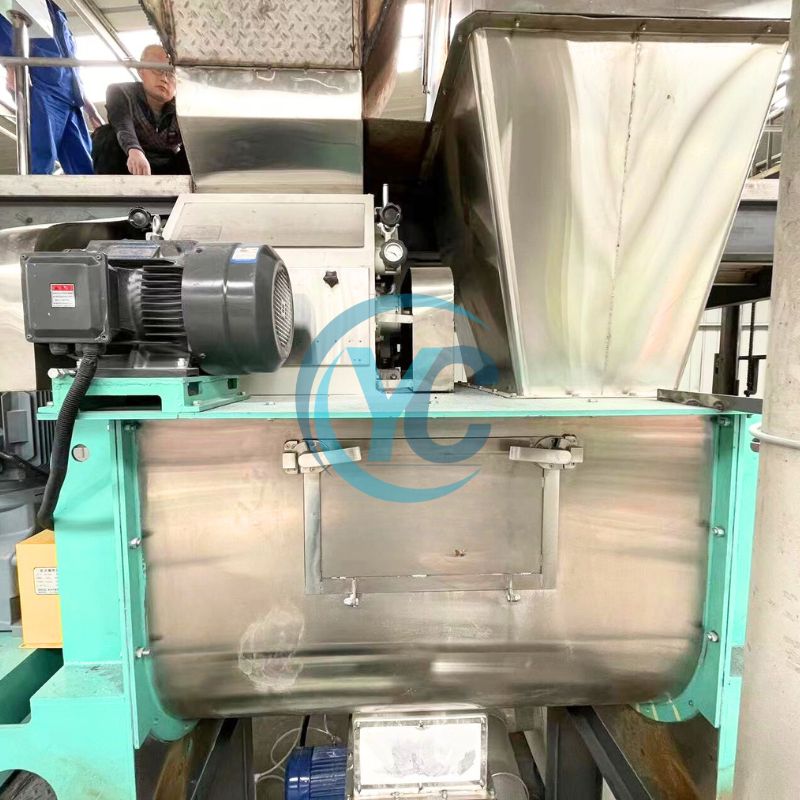

Horizontal Double Ribbon Mixer
Efficiently mixes main materials with microelements. Short mixing time. High uniformity.
Screw Discharge Conveyor
Transports mixed materials steadily to the packaging station. Compact structure. Stable performance.
Finished Product Storage Silo
Temporarily stores mixed powder. Feeds the packaging machine continuously.
Single-Station Powder Packaging Machine
Automatically weighs, clamps, and fills fertilizer. Suitable for multiple bag sizes.
Plastic Film Heat Sealing Machine
Seals plastic bags securely. Ensures airtight and professional packaging.
Bag Conveyor (Sealing Conveyor)
Transfers sealed bags to the next step. Connects smoothly to bundling or boxing section.
Combined Strapping Machine
Straps finished bags neatly. Improves handling and loading efficiency.
Main Control Cabinet (with Control Program)
Controls the entire line. Supports auto start/stop and safety functions.
Carton Conveyor (Boxing Conveyor)
Transfers strapped bags for easy boxing and transport.
Performance characteristics：
1. The system uses artificial ingredients, less investment, small footprint, flexible production.
2. The main body adopts three-dimensional structure closed design,
quick loading link, less storage material, no blockage, easy to clean.
3. Equipped with dust removal facilities, dust-free packaging,
in line with environmental assessment requirements.
4. Optional automatic packaging, packing, palletizing equipment.
5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion
Process flow
lifting machine material - manual point package, dust-free feeding station feeding - raw material crushing - efficient mixer -
finished product silo -- powder packing scale -- sealing and conveying -- packing and packing (optional) -- palletizing (optional)
