Product introduction：
The production of blended fertilizers is to directly mix simple fertilizers or compound fertilizers
containing nitrogen, phosphorus, and potassium nutrients by physical mixing according to the corresponding formula.
After the raw materials pass through the automatic metering system, the elevator lifts them and transports them to the mixer.
The mixer mixes the materials evenly and then measures and packages them.
The production line generally includes five parts: ingredient metering system,
conveying system, mixing system and quantitative packaging system.
Configuration List

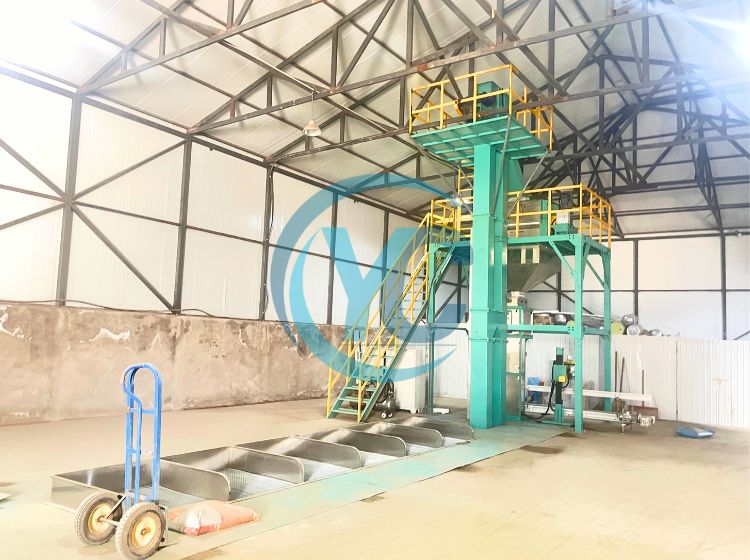

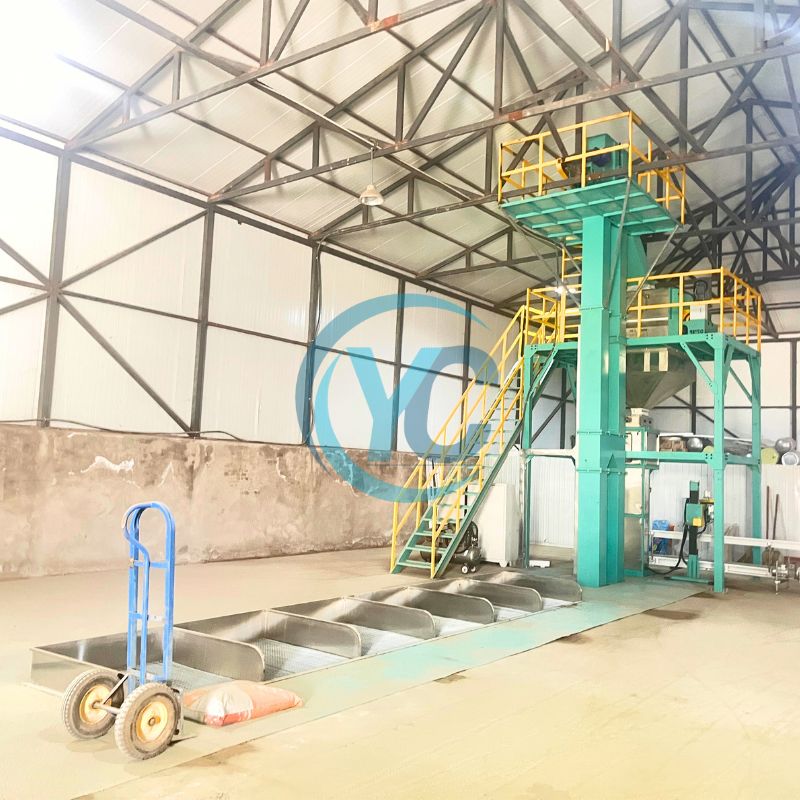

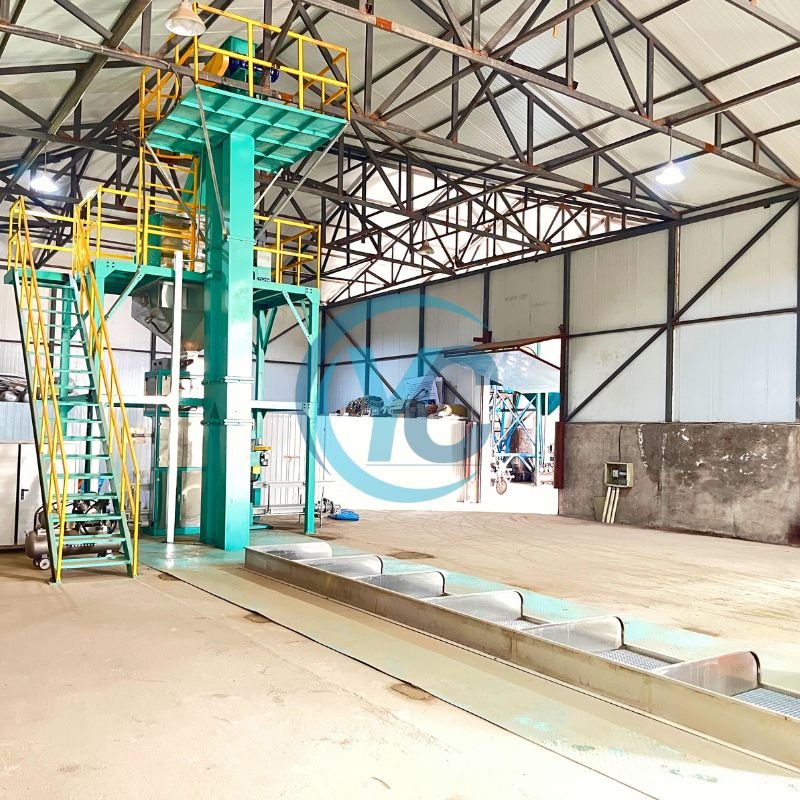

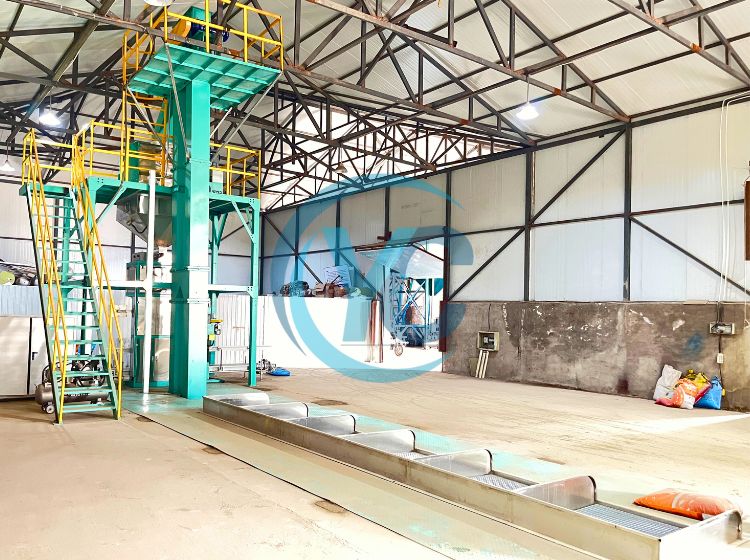

Raw Material Storage Bins (6 units)
Made of high-quality 304 stainless steel,
ensuring long-term stable use with corrosion resistance.
Screening Device (6 units)
Used for efficiently screening raw materials, ensuring the purity and consistency of the materials.
Bin Frame Structure (6 units)
Constructed with high-strength steel to meet international standards, ensuring the stability of the raw material bins.
Circular Feed Inlet (1 unit)
Made of 304 stainless steel, designed to support stable material feeding of bulk materials, improving production efficiency.
Weighing Scale (1 unit)
A precision belt scale design used to accurately measure the proportions of materials being added.
Lifting Device (1 set)
High-performance lifter, ensuring the quick and safe elevation of materials from lower positions to the production line.

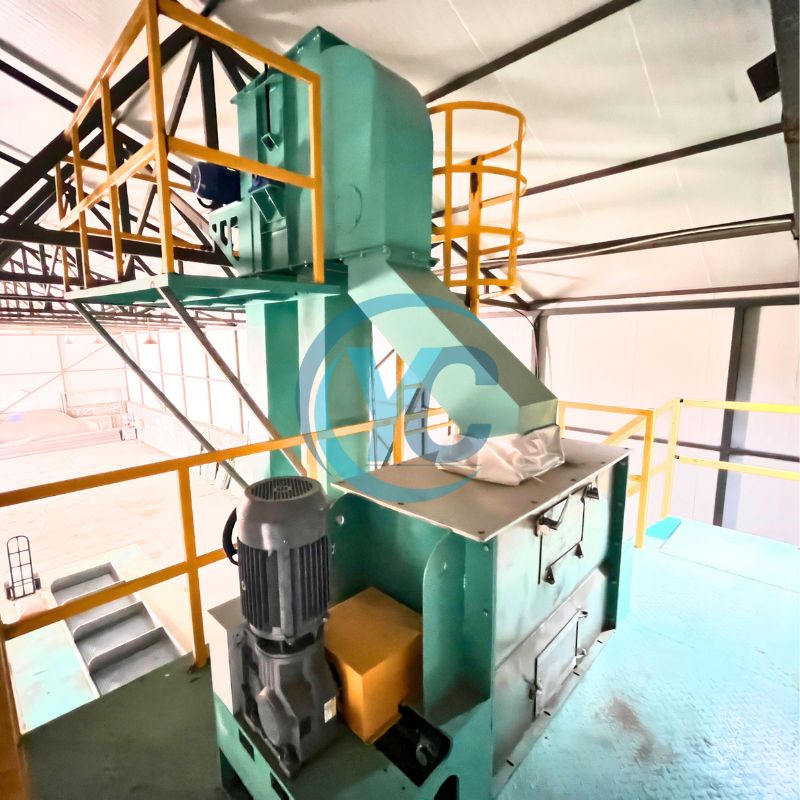

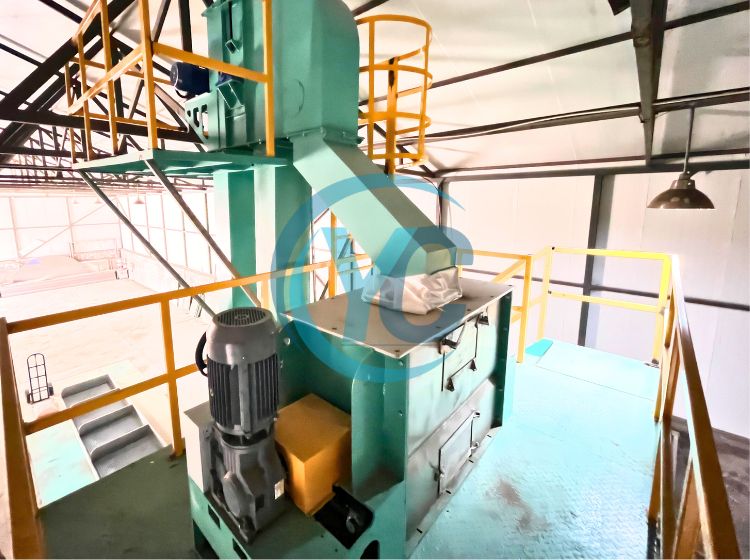

Mixer (1 set)
Twin-screw mixer, capable of evenly blending various raw materials, ensuring production consistency.
Finished Product Storage Bin (1 unit)
Made of 304 stainless steel, used for storing the mixed products, preventing external contamination.

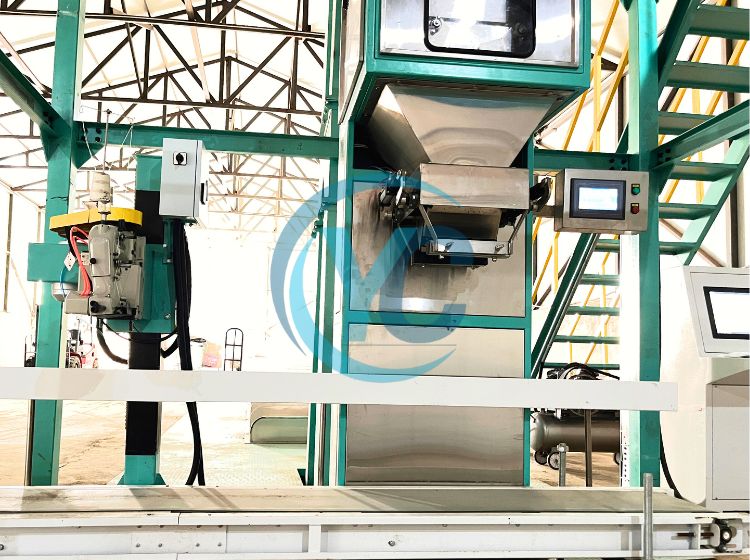

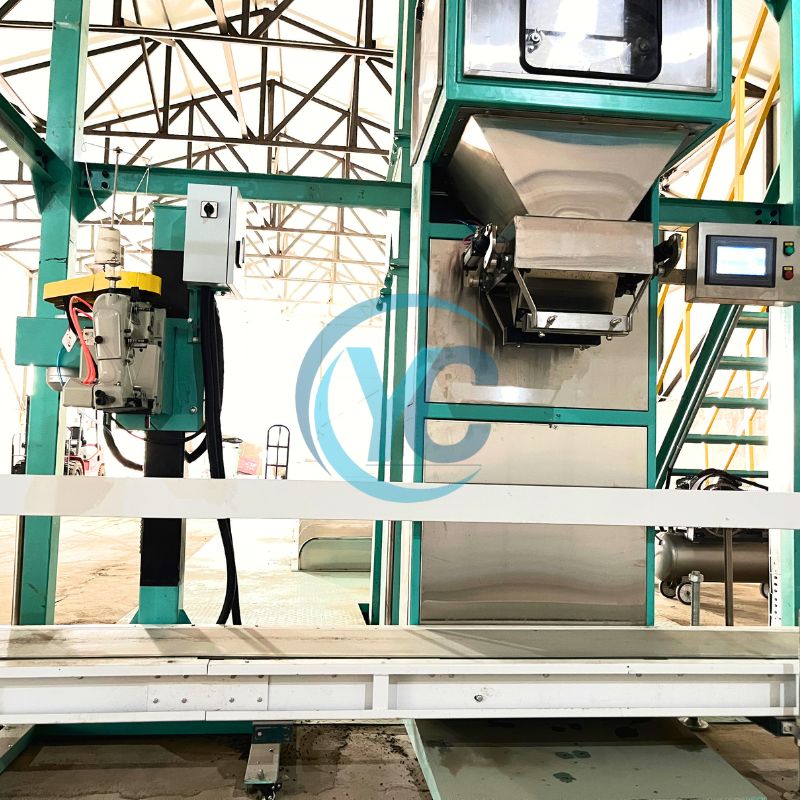

Automatic Packaging Machine (1 unit)
Automated packaging system, capable of precise measurement and increasing packaging speed.
PLC Control System (1 set)
Equipped with an efficient automation control system, precisely managing the batching, mixing, and packaging processes.
Air Supply System (1 set)
Provides stable air pressure support, ensuring the normal operation of all equipment in the production line.
Product parameter：
Capacity | 50 tons/h |
Packaging scope | 25-50KG |
Types of raw materials | 3-12 |
Working power supply | AC 380V ±10% Or customized according to customers |
Air source pressure | 0.4-0.8mpa |
Suitable for temperature | 30℃ -- +40℃ |
Relative humidity | 85%R.H |
Accuracy | ± 0.2% |
Process flow chart
