Overview:
The production line requires a factory building with a height of at least 8 meters. It features a dual-station powder packaging machine. Packaging efficiency is high, completing 6–8 bags per minute.
This meets the needs of medium to large water-soluble fertilizer production.

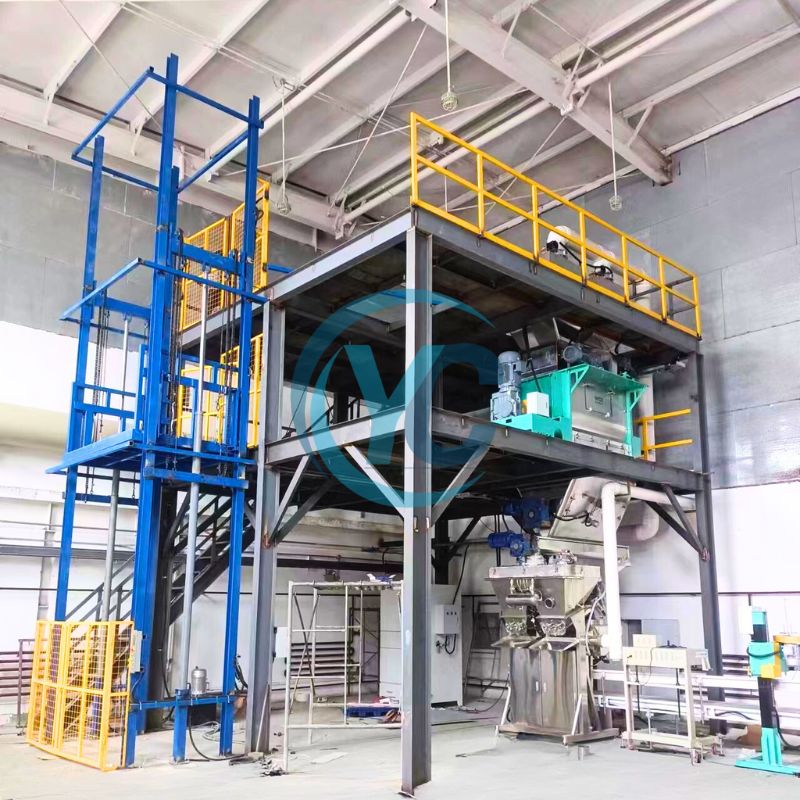

Semi-Automatic Powder Water-Soluble Fertilizer Production Line Configuration
urea crusher for refining raw material particles.
lump breaker to effectively crush material clumps.
pulse dust collector to reduce dust pollution during production.

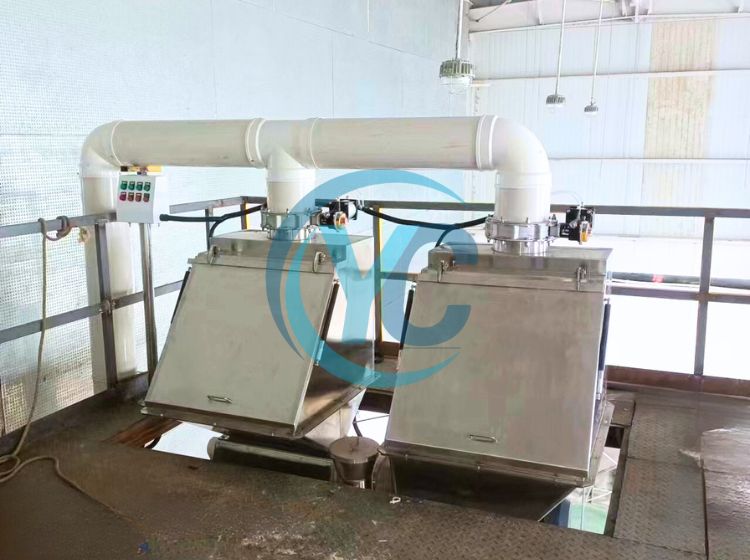

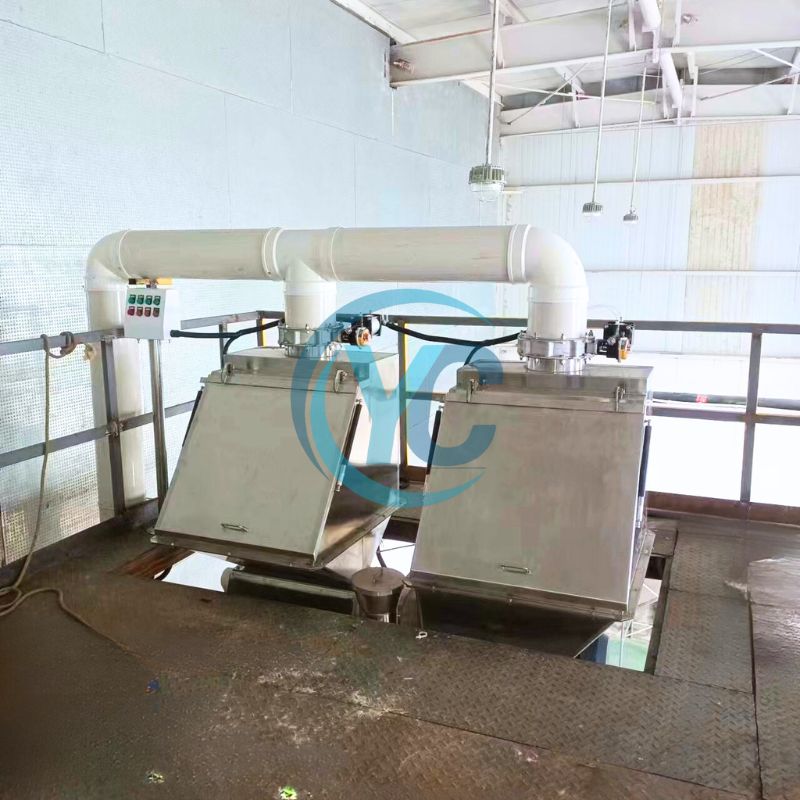

dust-free feeding station to ensure clean feeding operation.

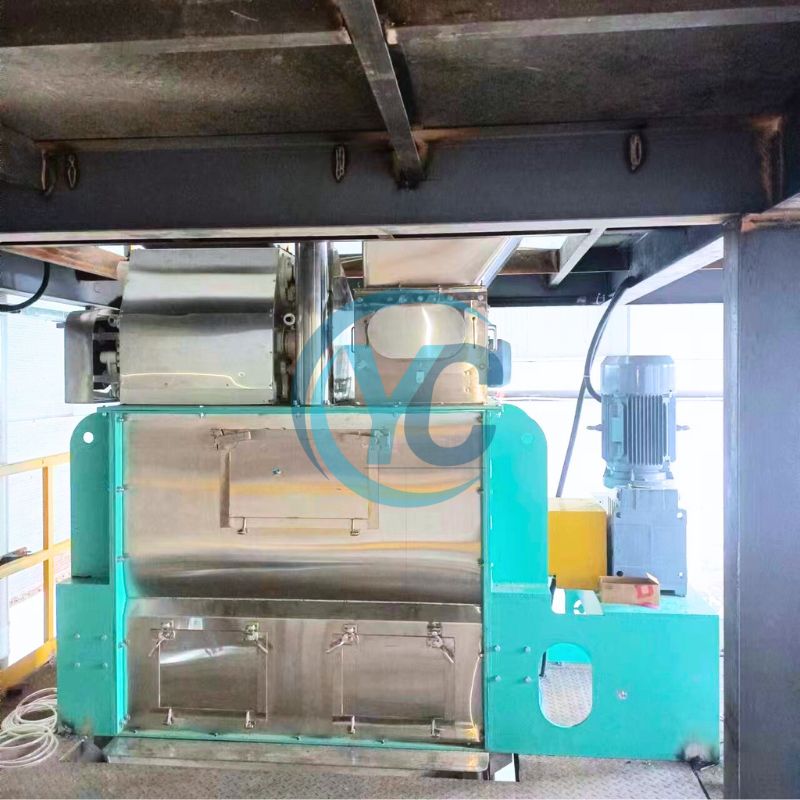

horizontal double ribbon mixer for uniform mixing.
set of storage silo and screw feeder for smooth material discharge.

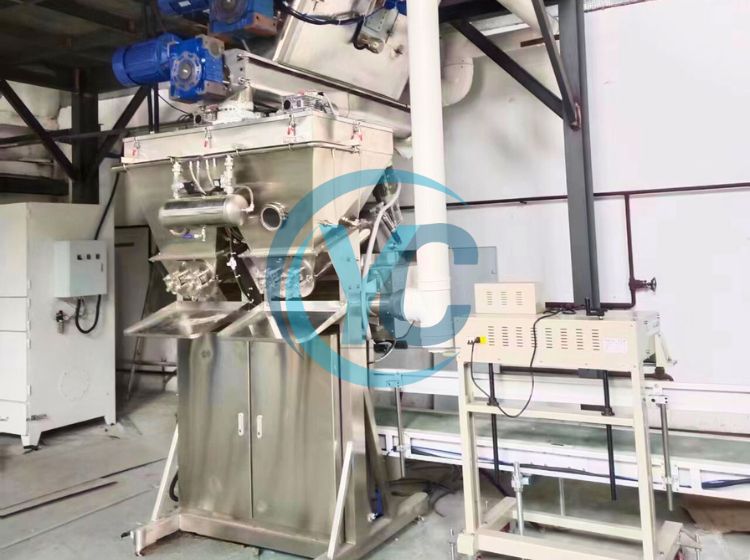

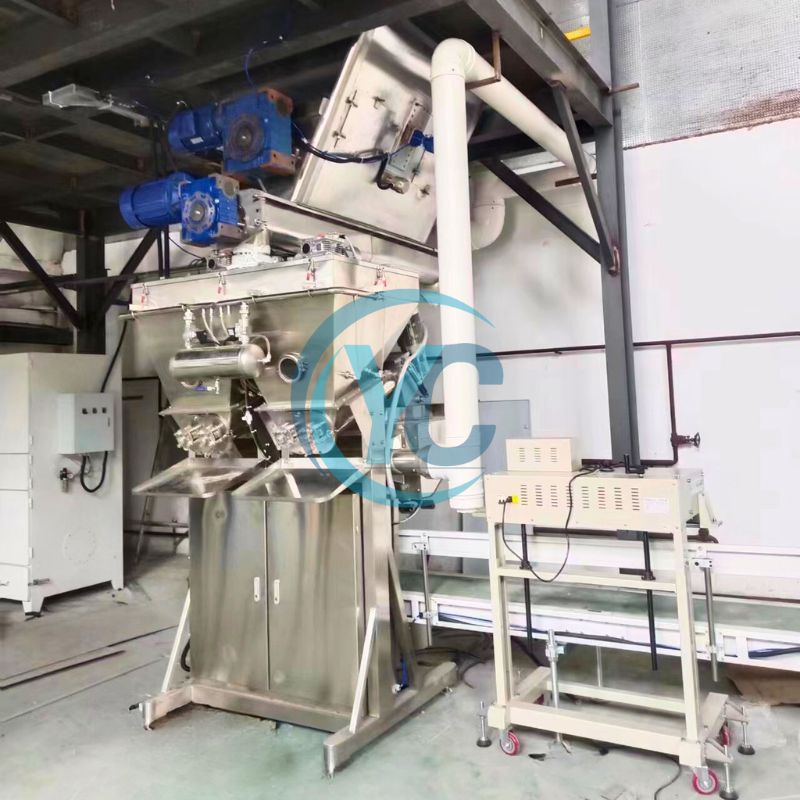

dual-station packaging machine for fast packaging—6 to 8 bags per minute.
heat sealing machine to ensure complete package sealing.
sewing machine for sealing 10–25 kg bags.
Performance characteristics：
1. The system uses artificial ingredients, less investment, small footprint, flexible production.
2. The main body adopts three-dimensional structure closed design,
quick loading link, less storage material, no blockage, easy to clean.
3. Equipped with dust removal facilities, dust-free packaging,
in line with environmental assessment requirements.
4. Optional automatic packaging, packing, palletizing equipment.
5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion
Process flow
lifting machine material
-manual point package,
dust-free feeding station feeding
-raw material crushing
-efficient mixer
-finished product silo
-powder packing scale
-sealing and conveying
-packing and packing (optional) -palletizing (optional)
