15 Tons Fertilizer Production Line with Ground-Level Batching System


The fertilizer production line is especially suitable for environments with a factory height of 7 meters or more, ensuring smooth equipment installation and production processes. With precise batching and an efficient mixing system, the line provides stable and high-efficiency production capacity, maintaining excellent performance under different working conditions and adapting to various production scales
Product name：15 tons NPK fertilizer production line
Material type：4-8 Materials, customizable
Mixed form：Horizontal Double Ribbon Mixer/Horizontal Twin Ribbon Blender
Measurement accuracy：±0.2%
Supply voltage：380V，50HZ
Working air source：0.4-0.6Mpa
Operating temperature：-25℃—40℃
Weighing speed：12-18bag/minute
Weighing range：20-50kg
Chat Now
production detail

Configuration List

  1. Raw Material Storage Units (6 units)
    Made of 304 stainless steel, with a sturdy structure, suitable for long-term storage of bulk materials.

  2. Screening Filter System (6 units)
    High-efficiency system to filter impurities from raw materials, ensuring material purity.

  3. Frame Support Structure (6 units)
    Made of high-quality steel, stable and reliable, supporting the raw material storage units.

  4. Feed Inlet (1 unit)
    Made of 304 stainless steel, ensuring fast and stable material feeding.

  5. Weighing Belt Scale (1 unit)
    Precisely measures material weight to ensure accurate batching ratios.

  6. Lifting System (1 set)
    High-efficiency system designed to quickly elevate materials to the required position.

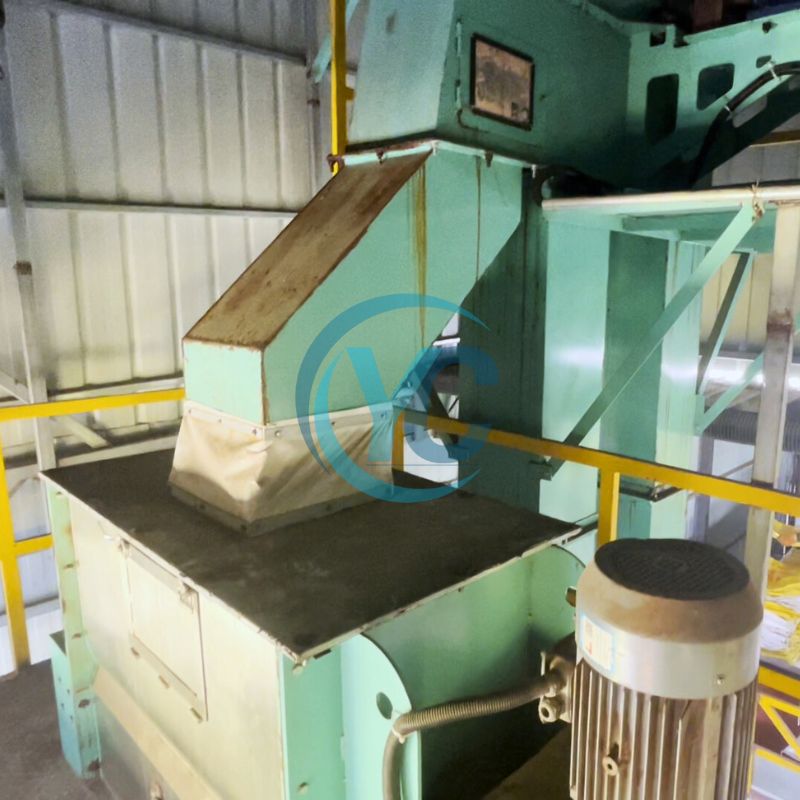

  7. Mixing Equipment (1 set)
    Twin-screw mixer, designed to blend different types of raw materials, ensuring uniformity.

  8. Finished Product Storage System (1 unit)
    Made of 304 stainless steel, ensuring safe storage of finished products.

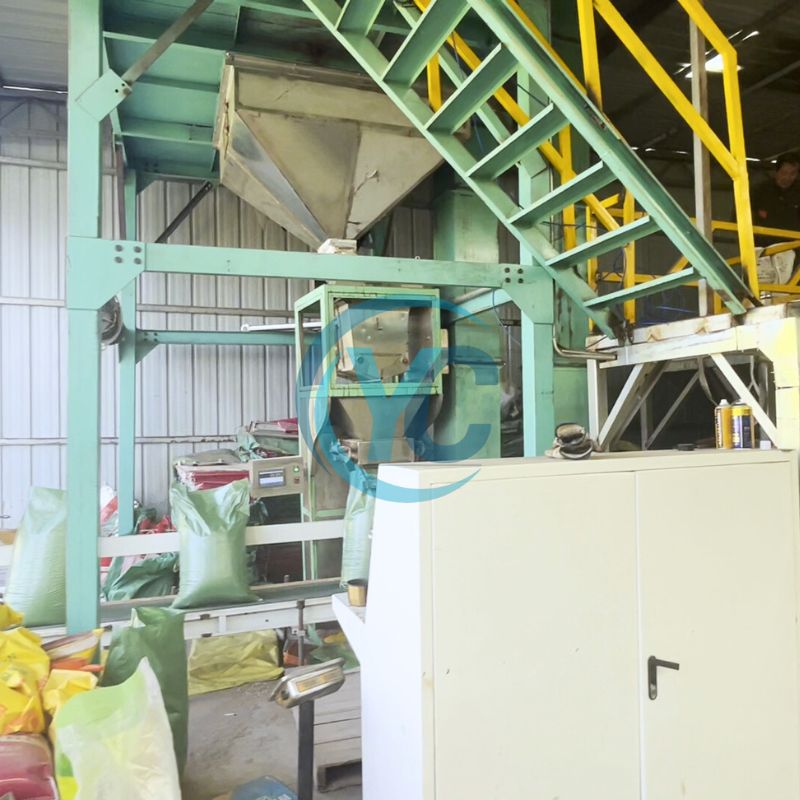

  9. Fully Automatic Packaging Equipment (1 unit)
    Realizes automatic packaging, improving production line efficiency.

  10. Control Electrical System (1 set)
    PLC control system, ensuring automation at every stage of production.

  11. Air Supply Support System (1 set)
    Ensures stable operation of equipment across the entire production line.



Product parameter：


Capacity

50 tons/h

Packaging scope

25-50KG

Types of raw materials

3-12

Working power supply

AC 380V ±10% Or customized according to customers

Air source pressure

0.4-0.8mpa

Suitable for temperature

30℃ -- +40℃

Relative humidity

85%R.H

Accuracy

± 0.2%



Process flow chart

fertilizer production process diagram


fetilizer batching equipment .jpg

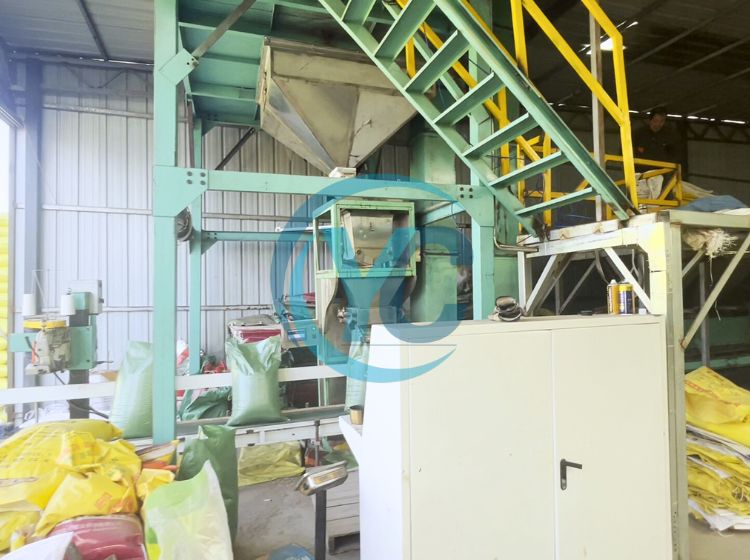

granule packing machine.jpg
