Water Soluble Fertilizer Production Line | Efficient Fertilizer Blending Machine


The powder water-soluble fertilizer production line is a semi-automatic underground system designed for producing solid drip irrigation fertilizers. It supports various formulations, including macro and micronutrients, amino acid-based, humic acid-based, and foliar fertilizers. The line integrates manual feeding, crushing, double ribbon mixing, storage, automatic packaging, sealing, and palletizing. It is ideal for small to medium-sized factories with an annual output of 1 to 3 tons.

This system uses manual batching, which reduces investment and saves space. The vertical, enclosed structure features a quick-assembly design that minimizes residue, prevents clogging, and allows for easy cleaning.
Product name:Semi-Automatic Water-Soluble Fertilizer Production Line
Material type:3-12 type
Mixed form:Horizontal Double Ribbon Mixer/Horizontal Twin Ribbon Blender
Measurement accuracy:±0.2%
Supply voltage:380V,50HZ
Working air source:0.4-0.8mpa
Operating temperature:-25℃—40℃
Weighing speed:3-4bag/minute
Weighing range:5-25kg
production detail

Performance characteristics:

1. The system uses artificial ingredients, less investment, small footprint, flexible production.

2. The main body adopts three-dimensional structure closed design, quick loading link, less storage material, no blockage, easy to clean.

3. Equipped with dust removal facilities, dust-free packaging, in line with environmental assessment requirements.

4. Optional automatic packaging, packing, palletizing equipment.

5. The contact material part of the equipment is made of 304 stainless steel, which has strong anti-corrosion

Process flow

lifting machine material - manual point package, dust-free feeding station feeding - raw material crushing - efficient mixer -

finished product silo -- powder packing scale -- sealing and conveying -- packing and packing (optional) -- palletizing (optional)


fertilizer production process diagram.jpg



npk fertilizer production process pdf

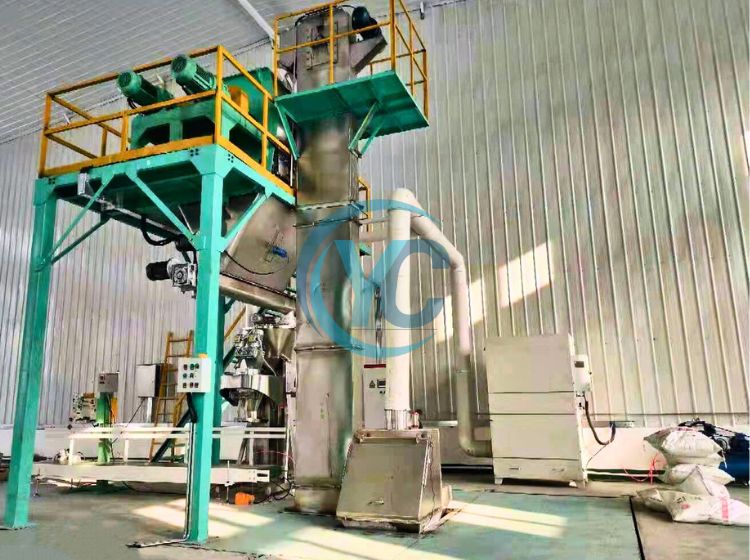

organic water soluble fertilizer machine .jpg

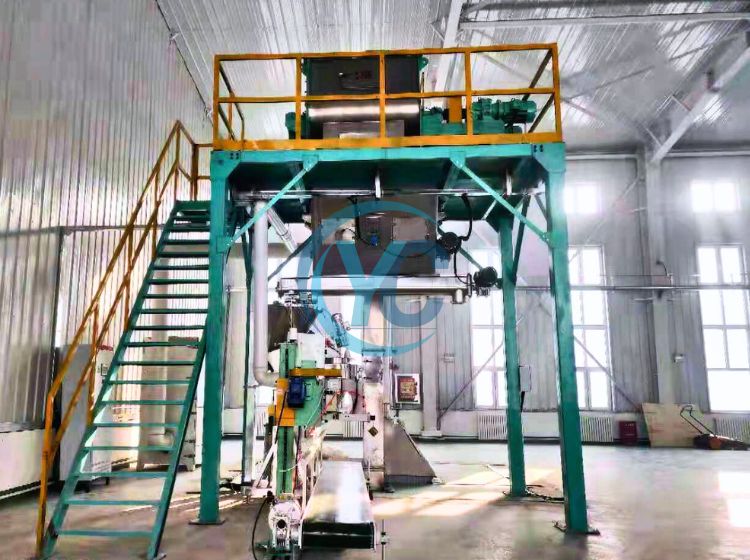

bio fertilizer making machine.jpg

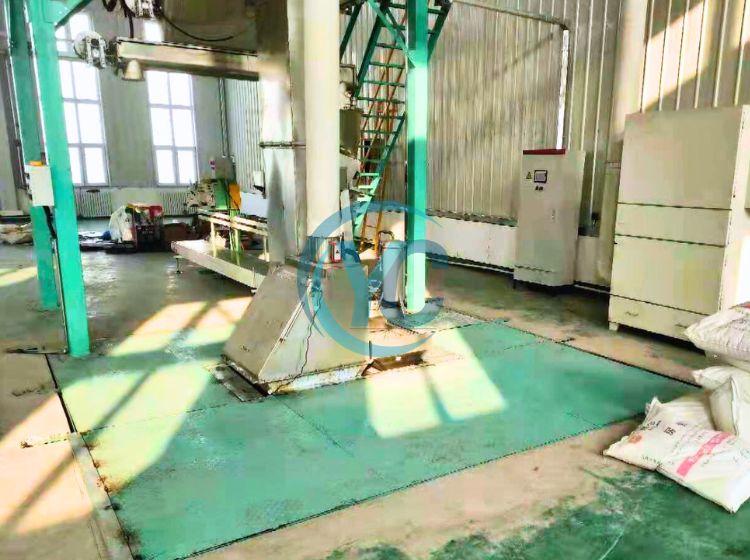

instant fertilizer making machine.jpg

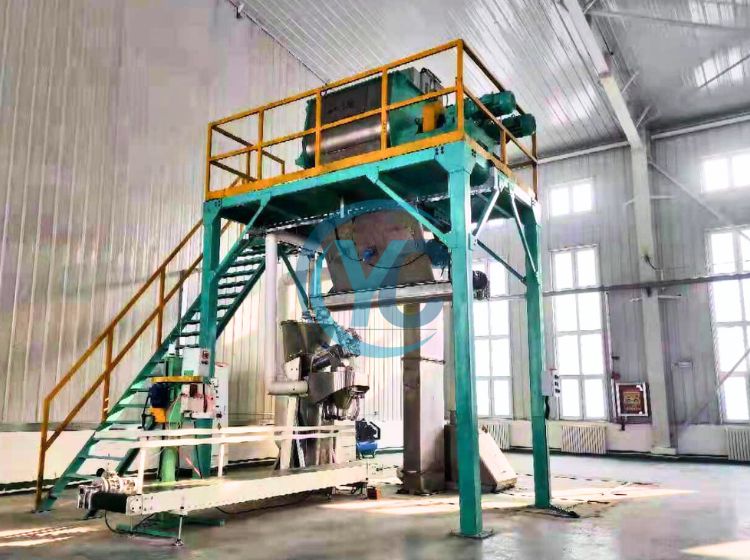

water soluble fertilizer mixing plant.jpg
